KONTROL SİSTEMLERİ - KONTROL KARTLARI
RGB kontrol kartlarında 3 marka öne çıkmaktadır.
Asenkron kullanımı daha fazla tercih edilmesi kullanımın kolay olması dolayısı ile Huidu marka kartlar ön plana çıkmaktadırlar.
Bu kartlardan en fazla kullanılanı HD-C30 olmakla beraber HD-C10, HD –A30, HD-A602 ve HD- A603 kartlar cihaz ölçüsüne ve piksel yoğunluğuna göre seçilebilmektedir. HD- C30 ve HD –A30 kullanım durumuna göre yani daha büyük ebatlı ve pikselli, ürünlerde bu kartlar sender olarak değerlendirilerek receiver kart eklenebilmektedir.
Processor kullanılacağı durumlarda ürün ebatına göre HD-A601, HD-A602 veya HD-A603 kullanılmaktadır.
Huidu marka kartların piksel taraması kullanıcıların yapabileceği yapıda olmaktadır ve https://www.ledarabul.com/kategori/video/ linkteki videolardan yararlanabilirsiniz.
Senkron sistemlerde daha çok Linsn kullanılmaktadır. Linsn kullanımında ağırlıklı olarak öne çıkan kartlar T802 Sender kart ve RV908 Receiver kartlardır. Processor bağlantısı yapılarak canlı yayın yapılabilmektedir.
Senkron ve daha profesyonel proje ve işlerde Nova kartlar tercih edilmektedir. Nova kartlarda genelde MS300 Sender kart ve MRV336 Receiver kartlar ön plana çıkmaktadır. Nova kartlar diğer kartlara oranla daha maliyetli olmalarına karşın daha fazla verime sahiplerdir.
HD- HUIDU SERİSİ KONTROL KARTLARI
R708
HD-R712
HD-R716
C08
C16L
C36C
HD-A3L
HD-A4L
HD-A5L
HD-A6L
HD-VP210
HD-VP410
HD-VP620
HD-VP820
HD-VP1240
HD-VP1460
HD-A7
HD-A8
R708
| Features | Parameters |
|---|---|
| With sending card | Dual-mode sending box, Asynchronous sending card, Synchronous sending card, VP series |
| Module type | Compatible with all common IC module, supports most PWM IC module |
| Scan mode | Supports any scanning method from static to 1/128 scan |
| Communication method | Gigabit Ethernet |
| Control range | Conventional chip: 128512 pixels, PWM chip: 256512 pixels |
| Multi-card connection | Receiving card can be put in any sequence |
| Gray scale | 256~65536 |
| Smart setting | A few simple steps to complete smart settings |
| Test functions | Integrated screen test function, display brightness uniformity, module flatness |
| Communication distance | Super Cat5, Cat6 network cable within 80 meters |
| Port | 5V DC Power2, 1Gbps Ethernet port2, HUB75E*8 |
| Input voltage | 4.0V-5.5V |
| Power | 5W |
| Item | Parameter value |
|---|---|
| Rated Voltage (V) | DC 4.2V-5.5V |
| Working Temperature (℃) | -40℃~80℃ |
| Working Environment Humidity | 0~90%RH |
| Storage Environment Humidity | -40~90%RH |
| Net weight (kg) | 0.077 |
HD-R712
| Features | Parameters |
|---|---|
| With sending card | Dual-mode sending box, Asynchronous sending card, Synchronous sending card, VP series |
| Module type | Compatible with all common IC module, supports most PWM IC module |
| Scan mode | Supports any scanning method from static to 1/128 scan |
| Communication method | Gigabit Ethernet |
| Control range | Maximum loading capacity: 262,144 pixels (512*512) Recommended loading capacity: conventional chip 128*1024 pixels, PWM chip 256*1024pixels Note: The actual loading capacity is related to the number of HUB ports/module resolution. |
| Multi-card connection | Receiving card can be put in any sequence |
| Gray scale | 256~65536 |
| Smart setting | A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board |
| Test functions | Receiving card integrated screen test function, Test display brightness uniformity and display module flatness. |
| Communication distance | Super Cat5, Cat6 network cable within 80 meters |
| Port | 5V DC Power2, 1Gbps Ethernet port2, HUB75E*8 |
| Input voltage | 4.0V-5.5V |
| Power | 5W |
| Item | Parameter value |
|---|---|
| Rated Voltage (V) | DC 4.2V-5.5V |
| Working Temperature (℃) | -40℃~80℃ |
| Working Environment Humidity | 0~90%RH |
| Storage Environment Humidity | 0~90%RH |
| Net weight (kg) | ≈91g |
HD-R716
| Features | Parameters |
|---|---|
| With sending card | Dual-mode sending box，Asynchronous sending card, Synchronous sending card, Video processor of VP series. |
| Module type | Compatible with all common IC module, supported most PWM IC module. |
| Scan mode | Supports any scanning method from static to 1/128 scan |
| Communication method | Gigabit Ethernet |
| Control range |
Maximum loading capacity: 327,680 pixels (512*640) conventional chip 160*1024, 256*640， PWM chip 320*1024,256*1280，512*640 Note: The actual loading capacity is related to the number of HUB ports/module resolution. |
| Multi-card connection | Receiving card can be put in any sequence |
| Gray scale | 256~65536 |
| Smart setting | A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board |
| Test functions | Receiving card integrated screen test function, Test display brightness uniformity and display module flatness. |
| Communication distance | Super Cat5,Cat6 network cable within 80 meters |
| Port | 5V DC Power*2,1Gbps Ethernet port*2, HUB75E*16 |
| Input voltage | 4.0V-5.5V |
| Power | 5W |
| No. | Interface | Description |
|---|---|---|
| 1 | Test button | Used to test display brightness uniformity and display module flatness. |
| 2 | Gigabit network indicator | D3、D4 for 2 Gigabit Ethernet port, no link—always off，link but not act—always on，link and act—flashing |
| 3 | Gigabit Ethernet port | used to connect the sending card or receiving card, the same two network ports are interchangeable |
| 4 | Power interface | Can be accessed with 4.0V ~ 5.5V DC voltage. |
| 5 | Power interface | can be accessed with 4.0V ~ 5.5V DC voltage；(4,5 connect one of them is ok.) |
| 6 | Flat cable interface | 16 HUB75E interface, connect to the LED modules by flat cable. |
| 7 | Work indicator | PWR（D5）always on green, the power supply is normal. PWR（D5）green, 1 second on 1 second off, network connection is abnormal or no video signal; 1 second flash 4 times, the receiver card is working normally, the video signal is normal; 2.5 seconds flash 5 times 1.5 seconds off, the receiver card parameters have been locked. |
| Item | Parameter value |
|---|---|
| Rated Voltage (V) | DC 4.0V-5.5V |
| Working Temperature (℃) | -40℃~80℃ |
| Working Environment Humidity (%RH) | 0~90%RH |
| Storage Environment Humidity (%RH) | 0~90%RH |
| Net weight (g) | ≈91g |
C08
| Kontrol programı | HDPlayer |
| Kullanım alanı | Full renk paneller |
| Metin | Metin ve resim doğrudan düzenlenmektedir |
| Çıkış | 1000M RJ45 x1, çift stereo AUDIO x1, 10x HUB75 |
| Zaman | Klasik analog saat, dijital saat ve görüntü arka planı olan çeşitli saatler |
| Hafıza | 4GB |
| Resim formatı | BMP, GIF, JPG, JPEG, PNG, GIF, PBM, PGM, PPM, XPM, XBM vb. |
| Video formatı | AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM vb. |
| Test | Kart üzerinde buton ile |
| Tarama | 1-32 rasgele ve statik tarama desteği |
| Reset | Kart üzerinde buton ile |
| Piksel sayısı | 384 x 320 |
| İletişim | USB, Ethernet, Wifi, 3G, 4G |
| Çalışma voltajı | DC 5V |
C16L
| Kontrol programı | HDPLAYER |
| Kullanım alanı | Full renk paneller |
| Metin | Metin ve resim doğrudan düzenlenmektedir |
| Çıkış | 1000M RJ45 x1, çift stereo AUDIO x1, 50 pinden 2 |
| Zaman | Klasik analog saat, dijital saat ve görüntü arka planı olan çeşitli saatler |
| Hafıza | 4GB |
| Resim formatı | BMP, GIF, JPG, JPEG, PNG, GIF, PBM, PGM, PPM, XPM, XBM vb. |
| Video formatı | AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM vb. |
| Test | Kart üzerinde buton ile |
| Tarama | 1-32 rasgele ve statik tarama desteği |
| Reset | Kart üzerinde buton ile |
| Piksel sayısı | 640 x 480 , 1024 x 300 , 600 x 512 |
| İletişim | Ethernet, USB |
| Çalışma voltajı | DC 5V |
C36C
| Tip | Full renk paneller |
| Tarama modu | 1-32 rasgele ve statik tarama desteği |
| Kontrol aralığı | 1024 x 512 |
| Gri ölçek | 0-65536 |
| Video formatı | AVI , WMV , MP4 , 3GP , ASF , MPG , FLV , F4V , MKV , MOV , DAT , VOB , TRP , TS , WEBM vb. |
| Resim formatı | BMP , GIF , JPG , JPEG , PNG , GIF , PBM , PGM , PPM , XPM , XBM vb. |
| Metin | Metin ve resim doğrudan düzenlenmektedir. |
| Zaman | Klasik analog saat, dijital saat ve görüntü arka planı bulunan çeşitli saatler |
| Hafıza | 4G Flash bellek |
| İletişim | 10 / 100M / 1000M RJ45 Ethernet, 3G, İnternet, LAN |
| Ses çıkışı | Çiftli stereo ses çıkışı |
| Çıkış | 1000M RJ45 X1, Ses x1, 50PIN Bağlantı Noktası x 2 |
| Çalışma voltajı | 5 V |
| Çalışma sıcaklığı | -20>℃-80>℃ |
| Port | 5V Güç x1, 10 / 100M / 1000M RJ45 x1, USB 2.0 x1, Test düğmesi x1 |
| Kontrol programı | HDPlayer |
HD-A3L
| Serial number | Name | Description |
|---|---|---|
| 1 | Working light | PWR: Power indicator light, the green light is always on, and the power input is normal RUN: System running light, the green light is flashing, the operating system is running normally; the green light is always on or off, the system is running abnormally Wi-Fi: Wireless indicator light, in AP mode, the green light is blinking; in STA mode, the green light is always on. The red light is blinking, the Wi-Fi is abnormal, and the light is off; the Wi-Fi bridge cannot connect to the server, and the yellow light is always on 4G: Communication network indicator, green light is always on, the connection to the cloud server is successful; yellow light is always on, the cloud service cannot be connected; red light is always on, there is no signal or the SIM is in arrears or cannot dial; the red light is blinking, the SIM cannot be detected; No light, no module detected(Only 4G version has 4G indicator light). |
| 2 | Function button | Switch program play, support change to TEST mode |
| 3 | USB | USB3.0 for updating programs, inserting programs or expanding capacity |
| 4 | Input network port | 100Mpbs network port input, connect to computer to debug and release programs, can be used to access LAN or Internet |
| 5 | SIM card slot | Micro SIM card slot, providing 4G/5G networking for remote control (optional 4G module) |
| Serial number | Name | Description |
|---|---|---|
| 1 | Power supply | 5V 3A ,12V 1.5A |
| 2 | Reset | Reset pinhole |
| 3 | USB 2.0 | Used for updating programs, inserting programs or expanding capacity(support change to OTG function) |
| 4 | Output network port | Gigabit output network port, cascaded with HD-R series receiving card |
| 5 | Audio output | TRS 3.5mm standard two-channel audio output port |
| 6 | Wi-Fi antenna | Connect Wi-Fi antenna to enhance wireless signal |
| 7 | Sensor | External temperature, humidity, brightness, wind speed, wind direction, noise, PM2.5, PM10, CO₂ and other sensors |
| 8 | 4G antenna | Connect 4G antenna (Only 4G version has) |
| Category | Item | Specification |
|---|---|---|
| Electrical parameters | Input power | DC 5V-12V |
| Maximum power consumption | 18W | |
| Storage Space | Random access memory | 1GB |
| Internal storage | 16GB | |
| Storage environment | Temperature | -40℃ ～ 80℃ |
| Humidity | 0%RH ～ 80%RH (No condensation) | |
| Working environment | Temperature | -40℃ ～ 70℃ |
| Humidity | 0%RH ～ 80%RH (No condensation) | |
| Physical properties | Size | 175mm×101.1mm×32.1mm |
| Net weight | Standard version: 240g 4G version: 260g |
|
| Protection degree | IP20 | |
| System software | Android 11.0 operating system software | |
| Android terminal application software | ||
| Category | Decoding | Size | Format | Remarks |
|---|---|---|---|---|
| JPEG | JFIF file format 1.02 | 48×48 pixels to 8176x8176pixles | JPG, JPEG | Non-interlaced scanning is not supported; SRGB JPEG is supported; Adobe RGB JPEG is supported |
| BMP | BMP | Unlimited | BMP | NA |
| GIF | GIF | Unlimited | GIF | NA |
| PNG | PNG | Unlimited | PNG | NA |
| WEBP | WEBP | Unlimited | WEBP | NA |
| Category | Decoding | Resolution | Max frame rate | Max bit rate | Format | Remarks |
|---|---|---|---|---|---|---|
| MPEG-1/2 | MPEG-1/2 | 48×48 pixels to 1920×1088 pixels | 30fps | 80Mbps | DAT, MPG, VOB, TS | Support Field Coding |
| MPEG-4 | MPEG-4 | 48×48 pixels to 1920×1088 pixels | 30fps | 38.4Mbps | AVI, MKV, MP4, MOV, 3GP | MS, MPEG4 v1/v2/v3, and GMC are not supported |
| H.264/AVC | H.264 | 48×48 pixels to 4096×2304 pixels | 2304P@30fps | 100Mbps | AVI, MKV, MP4, MOV, 3GP, TS, FLV | Support High and High 10 Profile Coding, MBAFF |
| MVC | H.264 MVC | 48×48 pixels to 4096×2304 pixels | 2304P@30fps | 100Mbps | MKV, TS | Only Stereo High Profile is supported |
| H.265/HEVC | H.265/HEVC | 64×64 pixels to 4096×2304 pixels | 2304P@60fps | 100Mbps | MKV, MP4, MOV, TS | Support Main Profile& Main10 Profile, Tile & Slice |
| GOOGLE VP8 | VP8 | 48×48 pixels to 1920×1088 pixels | 30fps | 38.4Mbps | WEBM, MKV | NA |
| GOOGLE VP9 | VP9 | 64×64 pixels to 4096×2304 pixels | 30fps | 80Mbps | WEBM, MKV | NA |
| H.263 | H.263 | SQCIF(128×96), QCIF(176×144), CIF(352×288), 4CIF(704×576) | 30fps | 38.4Mbps | 3GP, MOV, MP4 | H.263+ is not supported |
| VC-1 | VC-1 | 48×48 pixels to 1920×1088 pixels | 30fps | 45Mbps | WMV, ASF, TS, MKV, AVI | NA |
| MOTION JPEG | MJPEG | 48×48 pixels to 1920×1088 pixels | 30fps | 38.4Mbps | AVI | NA |
HD-A4L
| Serial number | Name | Description |
|---|---|---|
| 1 | Working light | PWR: Power indicator light, the green light is always on, and the power input is normal RUN: System running light, the green light is flashing, the operating system is running normally; the green light is always on or off, the system is running abnormally DISP: Display indicator, green light flashes, the FPGA system is running normally; the green light is always on or off and the system is running abnormally Wi-Fi: Wireless indicator light, in AP mode, the green light is blinking; in STA mode, the green light is always on. The red light is blinking, the Wi-Fi is abnormal, and the light is off; the Wi-Fi bridge cannot connect to the server, and the yellow light is always on 4G/5G: Communication network indicator, green light is always on, the connection to the cloud server is successful; yellow light is always on, the cloud service cannot be connected; red light is always on, there is no signal or the SIM is in arrears or cannot dial; the red light is blinking, the SIM cannot be detected; No light, no module detected |
| 2 | SIM card slot | Micro SIM card slot, providing 4G/5G networking for remote control (optional 4G/5G module) |
| 3 | Function button | HDMI IN: HDMI signal input, synchronous playback ASYNC: Asynchronous mode switching NEXT: Switch program play |
| 4 | Switch | Control the power of the player box, ON means power on and OFF means power off |
| Serial number | Name | Description |
|---|---|---|
| 1 | Wi-Fi antenna | Connect Wi-Fi antenna to enhance wireless signal |
| 2 | Sensor | External temperature, humidity, brightness, wind speed, wind direction, noise, PM2.5, PM10, CO₂ and other sensors |
| 3 | 4G/5G antenna | Connect 4G/5G antenna (4G with 1 antenna, 5G with 4 antennas, optional) |
| 4 | Power supply | 5V 3A ,12V 1.5A |
| 5 | Input network port | Gigabit input network port, connect to computer to debug and release programs, can be used to access LAN or Internet |
| 6 | Reset | Reset pinhole |
| 7 | Audio output | TRS 3.5mm standard two-channel audio output port |
| 8 | HDMI | HDMI IN: HDMI1.4 synchronous signal input interface, support adaptive scaling |
| 9 | USB | USB: USB3.0 for updating programs, inserting programs or expanding capacity OTG: Used for debugging or upgrading firmware (default USB 2.0 function, factory configurable) |
| 10 | Output network port | Gigabit output network port, cascaded with HD-R series receiving card |
| 11 | Ground wire | Ground wire connection port |
| Category | Item | Specification |
|---|---|---|
| Electrical parameters | Input power | DC 5V-12V |
| Maximum power consumption | 18W | |
| Storage Space | Random access memory | 2GB |
| Internal storage | 16GB | |
| Storage environment | Temperature | -40℃ ～ 80℃ |
| Humidity | 0%RH ～ 80%RH (No condensation) | |
| Working environment | Temperature | -40℃ ～ 70℃ |
| Humidity | 0%RH ～ 80%RH (No condensation) | |
| Physical properties | Size | 287mm×140.3mm×42.3mm |
| Net weight | ≈1140g | |
| Protection degree | IP20 | |
| System software | Android11.0 operating system software | |
| Android terminal application software | ||
| FPGA software | ||
| Category | Decoding | Size | Format | Remarks |
|---|---|---|---|---|
| JPEG | JFIF file format 1.02 | 96x32piels to 817×8176 pixels | JPG, JPEG | Non-interlaced scanning is not supported; SRGB JPEG is supported; Adobe RGB JPEG is supported |
| BMP | BMP | Unlimited | BMP | NA |
| GIF | GIF | Unlimited | GIF | NA |
| PNG | PNG | Unlimited | PNG | NA |
| WEBP | WEBP | Unlimited | WEBP | NA |
| Category | Decoding | Resolution | Maximum frame rate | Maximum bit rate | Format | Remarks |
|---|---|---|---|---|---|---|
| MPEG-1/2 | MPEG-1/2 | 48×48 pixels to 1920×1088 pixels | 30fps | 80Mbps | DAT, MPG, VOB, TS | Support Field Coding |
| MPEG-4 | MPEG-4 | 48×48 pixels to 1920×1088 pixels | 30fps | 38.4Mbps | AVI, MKV, MP4, MOV, 3GP | MS, MPEG4 v1/v2/v3, and GMC are not supported |
| H.264/AVC | H.264 | 48×48 pixels to 4096×2304 pixels | 2304P@60fps | 80Mbps | AVI, MKV, MP4, MOV, 3GP, TS, FLV | Field Coding, MBAFF are supported |
| MVC | H.264 MVC | 48×48 pixels to 4096×2304 pixels | 2304P@60fps | 100Mbps | MKV , TS | Only Stereo High Profile is supported |
| H.265/HEVC | H.265/HEVC | 64×64 pixels to 4096×2304 pixels | 2304P@60fps | 100Mbps | MKV , MP4, MOV , TS | Main Profile, Tile & Slice are supported |
| GOOGLE VP8 | VP8 | 48×48 pixels to 1920×1088 pixels | 30fps | 38.4Mbps | WEBM , MKV | NA |
| GOOGLE VP9 | VP9 | 64×64 pixels to 4096×2304 pixels | 60fps | 80Mbps | WEBM , MKV | NA |
| H.263 | H.263 | SQCIF(128×96), QCIF(176×144), CIF(352×288), 4CIF(704×576) | 30fps | 38.4Mbps | 3GP, MOV, MP4 | H.263+ is not supported |
| VC-1 | VC-1 | 48×48 pixels to 1920×1088 pixels | 30fps | 45Mbps | WMV, ASF, TS, MKV, AVI | NA |
| MOTION JPEG | MJPEG | 48×48 pixels to 1920×1088 pixels | 60fps | 60Mbps | AVI | NA |
HD-A5L
| Serial number | Name | Description |
|---|---|---|
| 1 | Working light | PWR: Power indicator light, the green light is always on, and the power input is normal RUN: System running light, the green light is flashing, the operating system is running normally; the green light is always on or off, the system is running abnormally DISP: Display indicator, green light flashes, the FPGA system is running normally; the green light is always on or off and the system is running abnormally Wi-Fi: Wireless indicator light, in AP mode, the green light is blinking; in STA mode, the green light is always on. The red light is blinking, the Wi-Fi is abnormal, and the light is off; the Wi-Fi bridge cannot connect to the server, and the yellow light is always on 4G/5G: Communication network indicator, green light is always on, the connection to the cloud server is successful; yellow light is always on, the cloud service cannot be connected; red light is always on, there is no signal or the SIM is in arrears or cannot dial; the red light is blinking, the SIM cannot be detected; No light, no module detected |
| 2 | SIM card slot | Micro SIM card slot, providing 4G/5G networking for remote control (optional 4G/5G module) |
| 3 | Function button | HDMI IN: HDMI signal input, synchronous playback ASYNC: Asynchronous mode switching NEXT: Switch program play |
| 4 | Switch | Control the power of the player box, ON means power on and OFF means power off |
| Serial number | Name | Description |
|---|---|---|
| 1 | Wi-Fi antenna | Connect Wi-Fi antenna to enhance wireless signal |
| 2 | Sensor | External temperature, humidity, brightness, wind speed, wind direction, noise, PM2.5, PM10, CO₂ and other sensors |
| 3 | 4G/5G antenna | Connect 4G/5G antenna (4G with 1 antenna, 5G with 4 antennas, optional) |
| 4 | Power supply | 5V 3A ,12V 1.5A |
| 5 | Input network port | Gigabit input network port, connect to computer to debug and release programs, can be used to access LAN or Internet |
| 6 | Reset | Reset pinhole |
| 7 | Audio output | TRS 3.5mm standard two-channel audio output port |
| 8 | HDMI | HDMI IN: HDMI1.4 synchronous signal input interface, support adaptive scaling |
| 9 | USB | USB: USB3.0 for updating programs, inserting programs or expanding capacity OTG: Used for debugging or upgrading firmware (default USB 2.0 function, factory configurable) |
| 10 | Output network port | Gigabit output network port, cascaded with HD-R series receiving card |
| 11 | Ground wire | Ground wire connection port |
| Category | Item | Specification |
|---|---|---|
| Electrical parameters | Input power | DC 5V-12V |
| Maximum power consumption | 18W | |
| Storage Space | Random access memory | 2GB |
| Internal storage | 16GB | |
| Storage environment | Temperature | -40℃ ～ 80℃ |
| Humidity | 0%RH ～ 80%RH (No condensation) | |
| Working environment | Temperature | -40℃ ～ 70℃ |
| Humidity | 0%RH ～ 80%RH (No condensation) | |
| Physical properties | Size | 287mm×140.3mm×42.3mm |
| Net weight | ≈1140g | |
| Protection degree | IP20 | |
| System software | Android11.0 operating system software | |
| Android terminal application software | ||
| FPGA software | ||
| Category | Decoding | Size | Format | Remarks |
|---|---|---|---|---|
| JPEG | JFIF file format 1.02 | 96x32piels to 817×8176 pixels | JPG, JPEG | Non-interlaced scanning is not supported; SRGB JPEG is supported; Adobe RGB JPEG is supported |
| BMP | BMP | Unlimited | BMP | NA |
| GIF | GIF | Unlimited | GIF | NA |
| PNG | PNG | Unlimited | PNG | NA |
| WEBP | WEBP | Unlimited | WEBP | NA |
| Category | Decoding | Resolution | Maximum frame rate | Maximum bit rate | Format | Remarks |
|---|---|---|---|---|---|---|
| MPEG-1/2 | MPEG-1/2 | 48×48 pixels to 1920×1088 pixels | 30fps | 80Mbps | DAT, MPG, VOB, TS | Support Field Coding |
| MPEG-4 | MPEG-4 | 48×48 pixels to 1920×1088 pixels | 30fps | 38.4Mbps | AVI, MKV, MP4, MOV, 3GP | MS, MPEG4 v1/v2/v3, and GMC are not supported |
| H.264/AVC | H.264 | 48×48 pixels to 4096×2304 pixels | 2304P@60fps | 80Mbps | AVI, MKV, MP4, MOV, 3GP, TS, FLV | Field Coding, MBAFF are supported |
| MVC | H.264 MVC | 48×48 pixels to 4096×2304 pixels | 2304P@60fps | 100Mbps | MKV , TS | Only Stereo High Profile is supported |
| H.265/HEVC | H.265/HEVC | 64×64 pixels to 4096×2304 pixels | 2304P@60fps | 100Mbps | MKV , MP4, MOV , TS | Main Profile, Tile & Slice are supported |
| GOOGLE VP8 | VP8 | 48×48 pixels to 1920×1088 pixels | 30fps | 38.4Mbps | WEBM , MKV | NA |
| GOOGLE VP9 | VP9 | 64×64 pixels to 4096×2304 pixels | 60fps | 80Mbps | WEBM , MKV | NA |
| H.263 | H.263 | SQCIF(128×96), QCIF(176×144), CIF(352×288), 4CIF(704×576) | 30fps | 38.4Mbps | 3GP, MOV, MP4 | H.263+ is not supported |
| VC-1 | VC-1 | 48×48 pixels to 1920×1088 pixels | 30fps | 45Mbps | WMV, ASF, TS, MKV, AVI | NA |
| MOTION JPEG | MJPEG | 48×48 pixels to 1920×1088 pixels | 60fps | 60Mbps | AVI | NA |
HD-A6L
| Serial number | Name | Description |
|---|---|---|
| 1 | Working light | PWR: Power indicator light, the green light is always on, and the power input is normal RUN: System running light, the green light is flashing, the operating system is running normally; the green light is always on or off, the system is running abnormally DISP: Display indicator, green light flashes, the FPGA system is running normally; the green light is always on or off and the system is running abnormally Wi-Fi: Wireless indicator light, in AP mode, the green light is blinking; in STA mode, the green light is always on. The red light is blinking, the Wi-Fi is abnormal, and the light is off; the Wi-Fi bridge cannot connect to the server, and the yellow light is always on 4G/5G: Communication network indicator, green light is always on, the connection to the cloud server is successful; yellow light is always on, the cloud service cannot be connected; red light is always on, there is no signal or the SIM is in arrears or cannot dial; the red light is blinking, the SIM cannot be detected; No light, no module detected |
| 2 | SIM card slot | Micro SIM card slot, providing 4G/5G networking for remote control (optional 4G/5G module) |
| 3 | Function button | HDMI LOOP: HDMI stitching mode HDMI IN: HDMI signal input, synchronous playback ASYNC: Asynchronous mode switching NEXT: Switch program play |
| 4 | Switch | Control the power of the player box, ON means power on and OFF means power off |
| Serial number | Name | Description |
|---|---|---|
| 1 | Wi-Fi antenna | Connect Wi-Fi antenna to enhance wireless signal |
| 2 | Sensor | External temperature, humidity, brightness, wind speed, wind direction, noise, PM2.5, PM10, CO₂ and other sensors |
| 3 | 4G/5G antenna | Connect 4G/5G antenna (4G with 1 antenna, 5G with 4 antennas, optional) |
| 4 | Power supply | 5V 3A ,12V 1.5A |
| 5 | Input network port | Gigabit input network port, connect to computer to debug and release programs, can be used to access LAN or Internet |
| 6 | Reset | Reset pinhole |
| 7 | Audio output | TRS 3.5mm standard two-channel audio output port |
| 8 | HDMI | HDMI IN: HDMI1.4 synchronous signal input interface, support adaptive scaling HDMI LOOP: HDMI1.4 synchronous signal input or splicing input interface HDMI OUT: HDMI1.4 output interface |
| 9 | USB | USB: USB3.0 for updating programs, inserting programs or expanding capacity OTG: Used for debugging or upgrading firmware (default U disk function, factory configurable) |
| 10 | Output network port | Gigabit output network port, cascaded with HD-R series receiving card |
| 11 | Ground wire | Ground wire connection port |
| Category | Item | Specification |
|---|---|---|
| Electrical parameters | Input power | DC 5V-12V |
| Maximum power consumption | 18W | |
| Storage Space | Random access memory | 2GB |
| Internal storage | 16GB | |
| Storage environment | Temperature | -40℃ ～ 80℃ |
| Humidity | 0%RH ～ 80%RH (No condensation) | |
| Working environment | Temperature | -40℃ ～ 70℃ |
| Humidity | 0%RH ～ 80%RH (No condensation) | |
| Physical properties | Size | 287mm×140.3mm×42.3mm |
| Net weight | 1004g | |
| Protection degree | IP20 | |
| System software | Android11.0 operating system software | |
| Android terminal application software | ||
| FPGA software | ||
| Category | Decoding | Size | Format | Remarks |
|---|---|---|---|---|
| JPEG | JFIF file format 1.02 | 96x32piels to 817×8176 pixels | JPG, JPEG | Non-interlaced scanning is not supported; SRGB JPEG is supported; Adobe RGB JPEG is supported |
| BMP | BMP | Unlimited | BMP | NA |
| GIF | GIF | Unlimited | GIF | NA |
| PNG | PNG | Unlimited | PNG | NA |
| WEBP | WEBP | Unlimited | WEBP | NA |
| Category | Decoding | Resolution | Maximum frame rate | Maximum bit rate | Format | Remarks |
|---|---|---|---|---|---|---|
| MPEG-1/2 | MPEG-1/2 | 48×48 pixels to 1920×1088 pixels | 30fps | 80Mbps | DAT, MPG, VOB, TS | Support Field Coding |
| MPEG-4 | MPEG-4 | 48×48 pixels to 1920×1088 pixels | 30fps | 38.4Mbps | AVI, MKV, MP4, MOV, 3GP | MS, MPEG4 v1/v2/v3, and GMC are not supported |
| H.264/AVC | H.264 | 48×48 pixels to 4096×2304 pixels | 2304P@60fps | 80Mbps | AVI, MKV, MP4, MOV, 3GP, TS, FLV | Field Coding, MBAFF are supported |
| MVC | H.264 MVC | 48×48 pixels to 4096×2304 pixels | 2304P@60fps | 100Mbps | MKV , TS | Only Stereo High Profile is supported |
| H.265/HEVC | H.265/HEVC | 64×64 pixels to 4096×2304 pixels | 2304P@60fps | 100Mbps | MKV , MP4, MOV , TS | Main Profile, Tile & Slice are supported |
| GOOGLE VP8 | VP8 | 48×48 pixels to 1920×1088 pixels | 30fps | 38.4Mbps | WEBM , MKV | NA |
| GOOGLE VP9 | VP9 | 64×64 pixels to 4096×2304 pixels | 60fps | 80Mbps | WEBM , MKV | NA |
| H.263 | H.263 | SQCIF(128×96), QCIF(176×144), CIF(352×288), 4CIF(704×576) | 30fps | 38.4Mbps | 3GP, MOV, MP4 | H.263+ is not supported |
| VC-1 | VC-1 | 48×48 pixels to 1920×1088 pixels | 30fps | 45Mbps | WMV, ASF, TS, MKV, AVI | NA |
| MOTION JPEG | MJPEG | 48×48 pixels to 1920×1088 pixels | 60fps | 60Mbps | AVI | NA |
HD-VP210
| No. | Button | Function Description |
|---|---|---|
| 1 | Power button | Device power switch button |
| 2 | LCD Screen | Display device menu information |
| 3 | Rotary button | Rotate the knob to select the menu and press to confirm |
| 4 | Return key | Exit the current menu or operation |
| 5 | SCALE | Full screen zoom shortcut button |
| 6 | Input source | Under U-disk input playback mode, DVI button will be defined as ⏮, means play previous file. Under U-disk input playback mode, VGA button will be defined as ⏭, means play next file. Under U-disk input playback mode, CVBS and HDMI button will be defined as ⏯, means pause or play the file. Under U-disk input playback mode, USB button will be defined as ■, means stop play. |
| Port | Quantity | Function |
|---|---|---|
| USB（Type A） | 1 | Directly play videos pictures in the USB Image file format：jpg、jpeg、png & bmp； Video file format：mp4、avi、mpg、mkv、mov、vob & rmvb; Video coding：MPEG4(MP4),MPEG_SD/HD,H.264(AVI,MKV),FLV |
| HDMI | 1 | Signal standard：HDMI1.3 Backward compatible Resolution：VESA Standard，≤1920×1080p@60Hz |
| CVBS | 1 | Signal standard：PAL/NTSC 1Vpp±3db (0.7V Video+0.3v Sync ) 75 ohm Resolution：480i,576i |
| VGA | 1 | Signal standard：R、 G、 B、 Hsync、 Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75 ohm black level：300mV Sync-tip：0V Resolution：VESA Standard，≤1920×1080p@60Hz |
| DVI | 1 | Signal standard：DVI1.0，HDMI1.3 Backward compatible Resolution：VESA Standard，PC to 1920×1080，HD to 1080p |
| AUDIO | 2 | Audio input and output |
| Port | Quantity | Function |
|---|---|---|
| LAN | 2 | 2-way network port output interface, connected to the acceptance card |
| Port | Quantity | Function |
|---|---|---|
| Square USB（Type B） | 1 | Connect computer setting screen parameters |
| Power interface | 1 | 110-240VAC，50/60Hz |
HD-VP410
| No. | Button | Function Description |
|---|---|---|
| 1 | Power button | Device power switch button |
| 2 | LCD Screen | Display device menu information |
| 3 | Rotary button | Rotate the knob to select the menu and press to confirm |
| 4 | Return key | Exit the current menu or operation |
| 5 | SCALE | Full screen zoom shortcut button |
| 6 | Input source | Under U-disk input playback mode, DVI button will be defined as ⏮, means play previous file. Under U-disk input playback mode, VGA button will be defined as ⏭, means play next file. Under U-disk input playback mode, CVBS and HDMI button will be defined as ⏯, means pause or play the file. Under U-disk input playback mode, USB button will be defined as ■, means stop play. |
| Port | Quantity | Function |
|---|---|---|
| USB（Type A） | 1 | Directly play videos pictures in the USB Image file format：jpg、jpeg、png & bmp； Video file format：mp4、avi、mpg、mkv、mov、vob & rmvb; Video coding：MPEG4(MP4),MPEG_SD/HD,H.264(AVI,MKV),FLV |
| HDMI | 1 | Signal standard：HDMI1.3 Backward compatible Resolution：VESA Standard，≤1920×1080p@60Hz |
| CVBS | 1 | Signal standard：PAL/NTSC 1Vpp±3db (0.7V Video+0.3v Sync ) 75 ohm Resolution：480i,576i |
| VGA | 1 | Signal standard：R、 G、 B、 Hsync、 Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75 ohm black level：300mV Sync-tip：0V Resolution：VESA Standard，≤1920×1080p@60Hz |
| DVI | 1 | Signal standard：DVI1.0，HDMI1.3 Backward compatible Resolution：VESA Standard，PC to 1920×1080，HD to 1080p |
| AUDIO | 2 | Audio input and output |
| Port | Quantity | Function |
|---|---|---|
| LAN | 2 | 2-way network port output interface, connected to the acceptance card |
| Port | Quantity | Function |
|---|---|---|
| Square USB（Type B） | 1 | Connect computer setting screen parameters |
| Power interface | 1 | 110-240VAC，50/60Hz |
HD-VP620
| No. | Button | Function Description |
|---|---|---|
| 1 | Power Button | Device power switch button |
| 2 | LCD screen | Display device menu information |
| 3 | Input Source Select keypad | 6 buttons [DVI] ~ [DP], 5 input source port selection buttons, corresponding to the input interface identification on the back panel. Among them: when you press BLACK and the BALCK LED indicator is on, the output is in a black screen state. |
| 4 | Function setting keypad | [BRIGHT]: Quickly swap out the shortcut keys of the brightness adjustment menu. [FREEZE]: Shortcut key for screen freeze. [MODE]: Quickly pop up the preset mode call menu. [LOCK]: Quickly lock the keys to prevent miss operation. [PXP]: Quickly enter the dual picture layout menu. [REV]: reserved function keys. |
| 5 | Window selection button | [WIN1]- [WIN2]Button: You can select the opened screen 1~2 window, and the LED light indicates the currently selected window. |
| 6 | Menu Area | Short press the knob [OK] key: it means to enter the main menu or input confirmation. Turn the knob clockwise to increase or the next option, counterclockwise to decrease or the previous option. [GUIDE] key: can quickly switch out the “smart navigation” setting interface. Return key [ESC]: means to exit the current operation or option. |
| Output Port | Quantity | Function |
|---|---|---|
| MONITOR | 1 | Synchronous monitoring of HDMI output interface, external LCD display. |
| LED Network port | 6 | LED1-LED6: 6-way network port output interface, Connect to the LED screen receiving card, total pixels 5.2 million, Widest 8000 dots, Highest 3840dots. |
| Input Port | Quantity | Function |
|---|---|---|
| EXT | 1 | Expansion input port, the default is DVI, HDMI or SDI can be selected |
| DVI | 1 | Interface form: DVI-I socket Signal standard: DVI1.0 Resolution: VESA standard, PC to 1920×1080, HD to 1080p |
| HDMI | 1 | Interface form: HDMI-A Signal standard: HDMI2.0 backward compatible Resolution: VESA standard,≤3840×2160@60Hz |
| DP | 1 | Interface form: DP Signal standard: DP1.2 backward compatible Resolution: VESA standard,≤3840×2160@60Hz |
| VGA | 1 | Interface form: DB15 socket Signal standard: R, G, B, Hsync, Vsync: 0 to 1Vpp ± 3dB (0.7V Video + 0.3v Sync ) 75 ohm black level: 300mV Sync-tip: 0V Resolution: VESA standard,≤1920×1080p@60Hz |
| AUDIO Port | Quantity | Function |
|---|---|---|
| IN | 1 | Input x1, 3.5mm audio port |
| OUT | 1 | Output x1, 3.5mm audio port |
| Port | Quantity | Function |
|---|---|---|
| Square USB (Type B) | 1 | Connect to the PC, debug the parameters of the sending card and receiving card, and program upgrades through HDSet software. |
| WIFI | 1 | WIFI Wireless control |
| Power interface | Quantity | Function |
|---|---|---|
| Power interface | 1 | 110-240VAC, 50/60Hz |
HD-VP820
| No. | Key | Description |
|---|---|---|
| 1 | Switch | AC power input switch |
| 2 | LCD screen | Display menu, screen parameters and other information, used for debug device |
| 3 | SOURCE | Input Source Select keypad, 5 input source port selection buttons, corresponding to the input interface identification on the back panel. BLACK: when you press BLACK and its indicator will be on, the output screen will be in a black state. |
| 4 | FUNCTION | Function keys, the key multiplexing function is digital selection, generally used when setting the resolution. BRIGHT: Quickly swap out the shortcut keys of the brightness adjustment menu. MODE: Quickly pop up the preset mode call menu. PXP: Quickly enter the dual picture layout menu FREEZE: Shortcut key for screen freeze. LOCK: Quickly lock the keys to prevent miss operation. REV: reserved function keys. |
| 5 | WIN | [WIN1]- [WIN2] Button: You can press it to add 1~2 window display, and its indicator means the currently selected window. |
| 6 | MENU | Short press the knob [OK] key: it means to enter the main menu or input confirmation. Turn the knob clockwise to increase or the next option, counterclockwise to decrease or the previous option. GUIDE: can quickly switch out the “smart navigation” setting interface. Return key ESC: means to exit the current operation or option. |
| No. | Name | Quantity | Description |
|---|---|---|---|
| 2 | HDMI | 1 | HDMI input interface Interface form: HDMI-A Signal standard: HDMI 2.0 backward compatible Resolution: VESA standard, ≤3840×2160@60Hz |
| DVI | 1 | Interface form: DVI-I socket Signal standard: DVI1.0 Resolution: VESA standard, PC to 1920×1200, HD to 1080p |
|
| DP | 1 | Interface form: DP Signal standard:DP1.2 backward compatible Resolution: VESA standard, ≤3840×2160@60Hz |
|
| VGA | 1 | Interface form: DB15 socket Signal standard: R, G, B, Hsync, Vsync: 0 to1Vpp±3dB (0.7V Video+0.3v Sync) 75 ohm black level: 300mV Sync-tip: 0V Resolution: VESA Standard, ≤1920×1080p@60Hz |
|
| EXT | 1 | DVI or SDI，Default standard DVI Interface form: BNC Signal standard: SD-SDI,HD-SDI,3G-SDI Resolution: VESA standard, ≤1920×1080@60Hz |
|
| 3 | AUDIO IN | 1 | TRS 3.5mm audio input |
| 6 | Power | 1 | AC power interface 100-240V，50/60Hz |
| No. | Name | Quantity | Description |
|---|---|---|---|
| 1 | LAN output | 8 | Gigabit Ethernet port Transmission speed 1Gbps, used for cascading receiving cards, transmitting RGB data stream. One Gigabit Ethernet port support loading capacity 655,360 pixels. |
| 3 | AUDIO OUT | 1 | TRS 3.5mm dual channel audio output port Connect audio power amplifier for high-power audio external amplifier |
| No. | Name | Quantity | Description |
|---|---|---|---|
| 4 | USB-B | 1 | Connect to the PC, used for debug LED controller |
| 5 | Wi-Fi | 1 | Connect to Wi-Fi antenna to enhance wireless signal |
| Item | Parameter value |
|---|---|
| Rated Voltage(V) | AC 100-240V |
| Working Temperature(℃) | -20℃~55℃ |
| Working Environment Humidity(%RH) | 20%RH~90%RH |
| Storage Environment Humidity (%RH) | 10%RH~95%RH |
HD-VP1240
| No. | Key | Description |
|---|---|---|
| 1 | Switch | AC power input switch |
| 2 | LCD screen | Display menu, screen parameters and other information, used for debug device |
| 3 | SOURCE | Input Source Select keypad, 5 input source port selection buttons, corresponding to the input interface identification on the back panel. BLACK: when you press BLACK and its indicator will be on, the output screen will be in a black state. |
| 4 | FUNCTION | Function keys, the key multiplexing function is digital selection, generally used when setting the resolution. BRIGHT: Quickly swap out the shortcut keys of the brightness adjustment menu. MODE: Quickly pop up the preset mode call menu. PXP: Quickly enter the dual picture layout menu FREEZE: Shortcut key for screen freeze. LOCK: Quickly lock the keys to prevent miss operation. Black: One-touch black screen button. |
| 5 | WIN | [WIN1]- [WIN4] Button: You can press it to add 1~2 window display, and its indicator means the currently selected window. |
| 6 | MENU | Short press the knob [OK] key: it means to enter the main menu or input confirmation. Turn the knob clockwise to increase or the next option, counterclockwise to decrease or the previous option. GUIDE: can quickly switch out the “smart navigation” setting interface. Return key ESC: means to exit the current operation or option. |
| No. | Name | Quantity | Description |
|---|---|---|---|
| 2 | HDMI | 1 | HDMI input interface Interface form: HDMI-A Signal standard: HDMI 2.0 backward compatible Resolution: VESA standard, ≤1920×1080@60Hz |
| DP | 1 | Interface form: DP Signal standard:DP1.2 backward compatible Resolution: VESA standard, ≤3840×2160@60Hz |
|
| DVI | 1 | Interface form: DVI-I socket Signal standard: DVI1.0 Resolution: VESA standard, PC to 1920×1200, HD to 1080p |
|
| EXT | 1 | DVI or SDI, Default standard DVI Interface form: BNC Signal standard: SD-SDI,HD-SDI,3G-SDI Resolution: VESA standard, ≤1920×1080@60Hz |
|
| 3 | AUDIO IN | 1 | TRS 3.5mm audio input |
| 6 | Power | 1 | AC power interface 100-240V, 50/60Hz |
| No. | Name | Quantity | Description |
|---|---|---|---|
| 1 | LAN output | 12 | Gigabit Ethernet port Transmission speed 1Gbps, used for cascading receiving cards, transmitting RGB data stream. One Gigabit Ethernet port support loading capacity 655,360 pixels. |
| 3 | AUDIO OUT | 1 | TRS 3.5mm dual channel audio output port Connect audio power amplifier for high-power audio external amplifier |
| No. | Name | Quantity | Description |
|---|---|---|---|
| 4 | USB-B | 1 | Connect to the PC, used for debug LED controller |
| RS232 | 1 | The integrated control host (i.e. central control) can be connected through RS232. | |
| 5 | Wi-Fi | 1 | Connect to Wi-Fi antenna to enhance wireless signal, mobile APP wireless operation |
HD-VP1460
| No. | Key | Description |
|---|---|---|
| 1 | Switch | AC power input switch |
| 2 | LCD screen | Display menu, screen parameters and other information, used for debug device |
| 3 | SOURCE | Input Source Select keypad, 5 input source port selection buttons, corresponding to the input interface identification on the back panel. BLACK: when you press BLACK and its indicator will be on, the output screen will be in a black state. |
| 4 | FUNCTION | Function keys, the key multiplexing function is digital selection, generally used when setting the resolution. BRIGHT: Quickly swap out the shortcut keys of the brightness adjustment menu. MODE: Quickly pop up the preset mode call menu. PXP: Quickly enter the dual picture layout menu FREEZE: Shortcut key for screen freeze. LOCK: Quickly lock the keys to prevent miss operation. Black: One-touch black screen button. |
| 5 | WIN | [WIN1]- [WIN4] Button: You can press it to add 1~2 window display, and its indicator means the currently selected window. |
| 6 | MENU | Short press the knob [OK] key: it means to enter the main menu or input confirmation. Turn the knob clockwise to increase or the next option, counterclockwise to decrease or the previous option. GUIDE: can quickly switch out the “smart navigation” setting interface. Return key ESC: means to exit the current operation or option. |
| No. | Name | Quantity | Description |
|---|---|---|---|
| 2 | HDMI | 1 | HDMI input interface Interface form: HDMI-A Signal standard: HDMI 2.0 backward compatible Resolution: VESA standard, ≤1920×1080@60Hz |
| DP | 1 | Interface form: DP Signal standard:DP1.2 backward compatible Resolution: VESA standard, ≤3840×2160@60Hz |
|
| DVI | 1 | Interface form: DVI-I socket Signal standard: DVI1.0 Resolution: VESA standard, PC to 1920×1200, HD to 1080p |
|
| EXT | 1 | DVI or SDI, Default standard DVI Interface form: BNC Signal standard: SD-SDI,HD-SDI,3G-SDI Resolution: VESA standard, ≤1920×1080@60Hz |
|
| 3 | AUDIO IN | 1 | TRS 3.5mm audio input |
| 6 | Power | 1 | AC power interface 100-240V, 50/60Hz |
| No. | Name | Quantity | Description |
|---|---|---|---|
| 1 | LAN output | 16 | Gigabit Ethernet port Transmission speed 1Gbps, used for cascading receiving cards, transmitting RGB data stream. One Gigabit Ethernet port support loading capacity 655,360 pixels. |
| 3 | AUDIO OUT | 1 | TRS 3.5mm dual channel audio output port Connect audio power amplifier for high-power audio external amplifier |
| No. | Name | Quantity | Description |
|---|---|---|---|
| 4 | USB-B | 1 | Connect to the PC, used for debug LED controller |
| RS232 | 1 | The integrated control host (i.e. central control) can be connected through RS232. | |
| 5 | Wi-Fi | 1 | Connect to Wi-Fi antenna to enhance wireless signal, mobile APP wireless operation |
HD-A7
| No. | Name | Description |
|---|---|---|
| 1 | Power switch | Control the on and off of the AC power supply of the player box. |
| 2 | MIC interface | – |
| 3 | USB interface | USB3.0: Used for updating programs or expanding memory; OTG: Used for debugging or upgrading firmware (default OTG function, factory configurable). |
| 4 | LCD screen | Debugging display menus, screen parameters and other information |
| 5 | SOURCE | Input signal selection area; Key multiplexing function for digital selection, generally used when setting resolution. ANDROID: with asynchronous switching keys. |
| 6 | FUNCTION | Function keys, key multiplexing function for digital selection, generally used when setting resolution. BLACK: a key to black screen. FREEZE: a key to freeze the screen. LOCK: key lock to prevent misuse. BRIGHT: quickly call out the brightness setting button. MODE: quickly call out the preset mode call menu. PLAYER: playback button. |
| 7 | WIN | Selection of opened screen windows. |
| 8 | MENU | Selection buttons: rotate for selection, press key for confirmation. GUIDE: Quickly call up the “Smart Navigation” setting interface. ESC: Exit/Return key. |
| No. | Name | Description |
|---|---|---|
| 1 | Sensor interface | The interface for connecting various sensors, such as environmental monitoring equipment, multi-function sensors, etc. |
| 2 | RJ45 output | Connect the receiving card. |
| 3 | HDMI input | Synchronous signal input, can be connected to computers, set-top boxes and other equipment, timing synchronization playback. |
| 4 | DP input | Synchronous signal input interface. |
| 5 | SIM card slot | Insert 4G/5G card for networking. |
| 6 | Audio interface | TRS 3.5mm standard two-channel audio output interface. |
| 7 | Serial port | RS232 serial port communication and control. |
| 8 | Power switch | For access to alternating current, AC 100-240V 50/60Hz. |
| 9 | Antenna interface | An interface for connecting an external 4G or 5G antenna (not standard). |
| 10 | LAN | Debugging interface, which can be connected to the Internet and local area network. |
| 11 | USB 2.0 | Directly programs playback or expand storage capacity. |
| 12 | HDMI IN | Synchronous mode signal input interface, which can be mixed with asynchronous mode. |
| 13 | Wi-Fi antenna interface | For connecting a Wi-Fi antenna. |
| Category | Item | Specification |
|---|---|---|
| Electrical parameters | Input Power | AC 100-240V 50/60Hz |
| Maximum power consumption | 72W | |
| Storage space | Running memory | 4G |
| Internal storage | 32GB | |
| Storage environment | Temperature | -40℃ ～ 80℃ |
| Humidity | 0%RH ～ 95%RH (non-condensing) | |
| Working environment | Temperature | -10℃ ～ 45℃ |
| Humidity | 0%RH ～ 95%RH (non-condensing) | |
| Physical properties | Sizes | 432mm×270mm×64.2mm |
| Weights | 4.8kg (packaging included) | |
| Protection class | IP20 | |
| System software | Android 10.0 OS Software | |
| Android Terminal Application Software | ||
| FPGA Software | ||
| Microcontroller Software | ||
| Form | Decoder | Sizes | Specification | Note |
|---|---|---|---|---|
| JPEG | JPEG | 48×48 to 8176×8176 | JPG, JPEG | Does not support non-interlaced scanning Supports SRGB JPEG Supports Adobe RGB JPEG |
| BMP | BMP | NA | BMP | NA |
| GIF | GIF | NA | GIF | NA |
| PNG | PNG | NA | PNG | NA |
| WEBP | WEBP | NA | WEBP | NA |
| Form | Decoder | Resolution | Maximum frame rate | Specification | Note |
|---|---|---|---|---|---|
| MPEG-1/2 | MPEG-1/2 | 1920×1080 | 1080P@60fps | DAT, MPG, VOB, TS | Support Field Coding |
| MPEG-4 | MPEG-4 | 1920×1080 | 1080P@60fps | AVI, MKV, MP4, MOV, 3GP | Unsupported MS, MPEG4 v1/v2/v3, GMC |
| H.264/AVC | H.264 | 1920×1080/3840×2160 | 4k×2k@30fps | AVI, MKV, MP4, MOV, 3GP, TS, FLV | Support Field Coding, MBAFF |
| MVC | H.264 MVC | 96×96 to 1920×1080 | 1080P@30fps | MKV , TS | Only support Stereo High Profile |
| H.265/HEVC | H.265/HEVC | 3840×2160/1920×1080 | 4K×2K@60fps | MKV , MP4, MOV , TS | Support Main Profile, Tile & Slice |
| VP8 | VP8 | 96×96 to 1920×1080 | 1080P@30fps | WEBM , MKV | NA |
| VP9 | VP9 | 3840×2160/1920×1080 | 4K×2K@60fps | WEBM , MKV | NA |
| H.263 | H.263 | 1920×1080 | 1080P@60fps | 3GP, MOV, MP4 | Unsupported H.263+ |
| VC-1 | VC-1 | 1920×1080 | 1080P@60fps | WMV, ASF, TS, MKV, AVI | NA |
HD-A8
| No. | Name | Description |
|---|---|---|
| 1 | Power switch | Control the on and off of the AC power supply of the player box. |
| 2 | MIC interface | – |
| 3 | USB interface | USB3.0: Used for updating programs or expanding memory; OTG: Used for debugging or upgrading firmware (default OTG function, factory configurable). |
| 4 | LCD screen | Debugging display menus, screen parameters and other information. |
| 5 | SOURCE | Input signal selection area. Key multiplexing function for digital selection, generally used when setting resolution. ANDROID: with asynchronous switching keys. |
| 6 | FUNCTION | Function keys, key multiplexing function for digital selection, generally used when setting resolution. BLACK: a key to black screen. FREEZE: a key to freeze the screen. LOCK: key lock to prevent misuse. BRIGHT: quickly call out the brightness setting button. MODE: quickly call out the preset mode call menu. PLAYER: playback button. |
| 7 | WIN | Selection of opened screen windows. |
| 8 | MENU | Selection buttons: rotate for selection, press key for confirmation. GUIDE: Quickly call up the “Smart Navigation” setting interface. ESC: Exit/Return key. |
| No. | Name | Description |
|---|---|---|
| 1 | Sensor interface | The interface for connecting various sensors, such as environmental monitoring equipment, multi-function sensors, etc. |
| 2 | RJ45 output | Connect the receiving card. |
| 3 | HDMI input | Synchronous signal input, can be connected to computers, set-top boxes and other equipment, timing synchronization playback. |
| 4 | DP input | Synchronous signal input interface. |
| 5 | SIM card slot | Insert 4G/5G card for networking. |
| 6 | Audio interface | TRS 3.5mm standard two-channel audio output interface. |
| 7 | Serial port | RS232 serial port communication and control. |
| 8 | Power switch | For access to alternating current, AC 100-240V 50/60Hz. |
| 9 | Antenna interface | An interface for connecting an external 4G or 5G antenna (not standard). |
| 10 | LAN | Debugging interface, which can be connected to the Internet and local area network. |
| 11 | USB 2.0 | Directly programs playback or expand storage capacity. |
| 12 | HDMI IN | Synchronous mode signal input interface, which can be mixed with asynchronous mode. |
| 13 | Wi-Fi antenna interface | For connecting a Wi-Fi antenna. |
| Category | Item | Specification |
|---|---|---|
| Electrical parameters | Input Power | AC 100-240V 50/60Hz |
| Maximum power consumption | 72W | |
| Storage space | Running memory | 4G |
| Internal storage | 32GB | |
| Storage environment | Temperature | -40℃ ～ 80℃ |
| Humidity | 0%RH ～ 95%RH (non-condensing) | |
| Working environment | Temperature | -10℃ ～ 45℃ |
| Humidity | 0%RH ～ 95%RH (non-condensing) | |
| Physical properties | Sizes | 432mm×270mm×64.2mm |
| Weights | 4.8kg (packaging included) | |
| Protection class | IP20 | |
| System software | Android 10.0 OS Software | |
| Android Terminal Application Software | ||
| FPGA Software | ||
| Microcontroller Software | ||
| Form | Decoder | Sizes | Specification | Note |
|---|---|---|---|---|
| JPEG | JPEG | 48×48 to 8176×8176 | JPG, JPEG | Does not support non-interlaced scanning Supports SRGB JPEG Supports Adobe RGB JPEG |
| BMP | BMP | NA | BMP | NA |
| GIF | GIF | NA | GIF | NA |
| PNG | PNG | NA | PNG | NA |
| WEBP | WEBP | NA | WEBP | NA |
| Form | Decoder | Resolution | Maximum frame rate | Specification | Note |
|---|---|---|---|---|---|
| MPEG-1/2 | MPEG-1/2 | 1920×1080 | 1080P@60fps | DAT, MPG, VOB, TS | Support Field Coding |
| MPEG-4 | MPEG-4 | 1920×1080 | 1080P@60fps | AVI, MKV, MP4, MOV, 3GP | Unsupported MS, MPEG4 v1/v2/v3, GMC |
| H.264/AVC | H.264 | 1920×1080/3840×2160 | 4k×2k@30fps | AVI, MKV, MP4, MOV, 3GP, TS, FLV | Support Field Coding, MBAFF |
| MVC | H.264 MVC | 96×96 to 1920×1080 | 1080P@30fps | MKV , TS | Only support Stereo High Profile |
| H.265/HEVC | H.265/HEVC | 3840×2160/1920×1080 | 4K×2K@60fps | MKV , MP4, MOV , TS | Support Main Profile, Tile & Slice |
| VP8 | VP8 | 96×96 to 1920×1080 | 1080P@30fps | WEBM , MKV | NA |
| VP9 | VP9 | 3840×2160/1920×1080 | 4K×2K@60fps | WEBM , MKV | NA |
| H.263 | H.263 | 1920×1080 | 1080P@60fps | 3GP, MOV, MP4 | Unsupported H.263+ |
| VC-1 | VC-1 | 1920×1080 | 1080P@60fps | WMV, ASF, TS, MKV, AVI | NA |
COLAYTI SERİSİ KONTROL KARTLARI
E80
E120
5A-75E
A35
A40
A60
A200
A500
A800
X2M
X4M
X6
X7
X8E
VX10
X12
VX10
X16E
X20M
X26M
X40M
E80
| Kontrol programı | Power LED |
| Model | TF-QS2 |
| Bağlantı şekli | USB |
| Pixel sayısı | Tam renkli 256×128 – 512×64, Genişlik en çok 1024, Yükseklik max 128 |
| Tarama | 1/32,1/16,1/8,1/4,1/2 statik |
| Hafıza | 128 M |
| Hub sayısı | 4 adet HUB75 |
| Program Sayısı | Maksimum 200 program desteği |
| Efekt | 45 çeşit farklı efekt |
| İçerik türü | Video, metin, flash, resim, animasyon, zamanlama, saymak, saat, sıcaklık, nem |
| Zaman göstergesi | Saat, zaman, saniye ile zaman, yazı tipi boyutunu ayarlama desteği, saat dilimini ayarlayabilme |
| Harici bağlantı | Sıcaklık sensörü, sıcaklık ve nem sensörü, parlaklık sensörü |
| Test | Kart üzerinde buton ile |
| Çalışma sıcaklığı | -30 ℃ ~ 70 ℃ |
| Çalışma voltajı | DC 5V |
E120
| Kontrol programı | Power LED |
| Model | TF-QS2N |
| Bağlantı şekli | Ethernet , USB |
| Pixel sayısı | Tam renkli 256×128 – 512×64, Genişlik en çok 1024, Yükseklik max 128 |
| Tarama | 1/32,1/16,1/8,1/4,1/2 statik |
| Hub | 4 adet HUB75 |
| Hafıza | 128 M |
| Program Sayısı | Maksimum 200 program desteği |
| Efekt | 45 çeşit farklı efekt |
| İçerik türü | Video, metin, flash, resim, animasyon, zamanlama, saymak, saat, sıcaklık, nem |
| Zaman göstergesi | Saat, zaman, saniye ile zaman, yazı tipi boyutunu ayarlama desteği, saat dilimini ayarlayabilme |
| Harici bağlantı | Sıcaklık sensörü, sıcaklık ve nem sensörü, parlaklık sensörü |
| Test | Kart üzerinde buton ile |
| Çalışma sıcaklığı | -30 ℃ ~ 70 ℃ |
| Çalışma voltajı | DC 5V |
5A-75E
| Kontrol programı | Power LED |
| Model | TF-QB5 |
| Bağlantı şekli | Ethernet – Gigabit Ethernet – USB |
| Pixel sayısı | Tam renkli 720×720 1024×480 (Yükseklik maksimum: 720, En genişlik: 1024) |
| Tarama | 1-32 tarama |
| Hub | 2 x 50 Pin |
| Hafıza | 4 GB |
| Program Sayısı | Maksimum 200 program |
| Efekt | 45 çeşit farklı efekt |
| İçerik türü | Video, ses, metin, flaş, resim, animasyon, zamanlama, geri sayım, sayım, saat, sıcaklık, nem., hava durumu |
| Zaman göstergesi | Saat, zaman, saniye ile zaman, yazı tipi boyutunu ayarlama desteği, saat dilimini ayarlayabilme |
| Test | Kart üzerinde buton ile |
| Çalışma sıcaklığı | -30 ℃ ~ 70 ℃ |
| Çalışma voltajı | DC 5V |
| Lanport İletişim | Kontrol kartı varsayılan IP: 192.168.1.252, destek ağ otomatik search 10M / 100M / 1000 Madaptive |
A35
| Kontrol programı | Power LED |
| Model | TF-QC1 |
| Bağlantı şekli | USB + Gigabit Ethernet |
| Pixel sayısı | Tam renkli 512×80 – 384×160 |
| Tarama | 1/16, 1/8, 1/4, 1/2 statik |
| Hafıza | 4G |
| Hub sayısı | 2 adet 50 pin |
| Program Sayısı | Maksimum 200 program desteği |
| Efekt | 45 çeşit farklı efekt |
| İçerik türü | Video, metin, flash, resim, animasyon, zamanlama, saymak, saat, sıcaklık, nem |
| Zaman göstergesi | Saat, zaman, saniye ile zaman, saat dilimini ayarlayabilme |
| Harici bağlantı | Sıcaklık sensörü, sıcaklık ve nem sensörü |
| Test | Kart üzerinde buton ile |
| Çalışma sıcaklığı | -30 ℃ ~ 70 ℃ |
| Çalışma voltajı | DC 5V |
A40
| Kontrol programı | Power LED |
| Model | TF-QC3 |
| Bağlantı şekli | USB + Gigabit Ethernet |
| Pixel sayısı | Tam renkli 512×160 – 384×320 |
| Tarama | 1/16, 1/8, 1/4, 1/2 statik |
| Hafıza | 4G |
| Hub sayısı | 2 adet 50 pin |
| Program Sayısı | Maksimum 200 program desteği |
| Efekt | 45 çeşit farklı efekt |
| İçerik türü | Video, metin, flash, resim, animasyon, zamanlama, saymak, saat, sıcaklık, nem |
| Zaman göstergesi | Saat, zaman, saniye ile zaman, saat dilimini ayarlayabilme |
| Harici bağlantı | Sıcaklık sensörü, sıcaklık ve nem sensörü |
| Test | Kart üzerinde buton ile |
| Çalışma sıcaklığı | -30 ℃ ~ 70 ℃ |
| Çalışma voltajı | DC 5V |
A60
Sekme içeriği
A200
Sekme içeriği
A500
Sekme içeriği
A800
Sekme içeriği
X2M
Sekme içeriği
X4M
Sekme içeriği
X6
Sekme içeriği
X7
Sekme içeriği
X8E
Sekme içeriği
VX10
Sekme içeriği
X12
Sekme içeriği
VX10
Sekme içeriği
X16E
Sekme içeriği
X20M
Sekme içeriği
X26M
Sekme içeriği
X40M
Sekme içeriği
Outdoor Rental Screens
P2.6
P2.9
3.9
P2.6
| No | Kalem | Açıklama | Modül |
|---|---|---|---|
| 1 | Pixel pitch | 2.604mm | |
| 2 | Pixel Density | 147456 dots/m² | |
| 3 | Pixel configuration | 1R1G1B | |
| 4 | LED type | SMD1415 | |
| 5 | Module size | 250mm×250mm×16.5mm | |
| 6 | Module weight | 600g+5g | |
| 7 | Module resolution | W96*H96dots | |
| 8 | Module QTY/ m² | 16 pcs/ m² | |
| 9 | Min. Viewing Distance | ≥2.604m | |
| 10 | Brightness | 24500cd/m² | |
| 11 | Viewing Angle | H: 170°15’ V: 170°15’ | |
| 12 | Driving Mode | 1/24 scan | |
| 13 | Interface | self-defined interface 16P | |
| 14 | Input voltage | 4.2V-5V | |
| 15 | Max. Power Consumption | 36 w Per piece | |
| 16 | Avg. Power Consumption | 18 w Per piece | |
| 17 | Signal Processing Depth | 16384 | |
| 18 | Video frame rate | 60 frames/s | |
| 19 | Refresh Rate | ≥3840Hz | |
| 20 | Defective Dots Rate | <0.0001 | |
| 21 | Decay Rate (Operate 3 years) | ≤15% | |
| 22 | Brightness Conformity | 298.5% | |
| 23 | Colors | 281 trillion | |
| 24 | MTBF | ≥10000 hours | |
| 25 | Lifespan | ≥100000 hours | |
| 26 | Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. | |
| 27 | Operating Temperature | -20℃~+60℃ | |
| 28 | Operating Humidity | 10-80% no condensation | |
| 29 | Storage Temperature | -20℃~+60℃ | |
| 30 | Storage Humidity | 10-80% no condensation |
P2.9
| No | Kalem | Açıklama | Modül |
|---|---|---|---|
| 1 | Pixel pitch | 2.976mm | |
| 2 | Pixel Density | 112896 dots/m² | |
| 3 | Pixel configuration | 1R1G1B | |
| 4 | LED type | SMD1415 | |
| 5 | Module size | 250mm×250mm×16mm | |
| 6 | Module weight | 631g+5g | |
| 7 | Module resolution | W84*H84dots | |
| 8 | Module QTY/ m² | 16 pcs/ m² | |
| 9 | Min. Viewing Distance | ≥2.976m | |
| 10 | Brightness | 24500cd/m² | |
| 11 | Viewing Angle | H: 170°15’ V: 170°15’ | |
| 12 | Driving Mode | 1/21 scan | |
| 13 | Interface | self-defined interface 16P | |
| 14 | Input voltage | 4.2V-5V | |
| 15 | Max. Power Consumption | 41.5 w Per piece | |
| 16 | Avg. Power Consumption | 21 w Per piece | |
| 17 | Signal Processing Depth | 16384 | |
| 18 | Video frame rate | 60 frames/s | |
| 19 | Refresh Rate | 23840Hz | |
| 20 | Defective Dots Rate | <0.0001 | |
| 21 | Decay Rate (Operate 3 years) | ≤15% | |
| 22 | Brightness Conformity | ≥98.5% | |
| 23 | Colors | 281 trillion | |
| 24 | MTBF | ≥10000 hours | |
| 25 | Lifespan | ≥100000 hours | |
| 26 | Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. | |
| 27 | Operating Temperature | -20℃~+60℃ | |
| 28 | Operating Humidity | 10-80% no condensation | |
| 29 | Storage Temperature | -20℃~+60℃ | |
| 30 | Storage Humidity | 10-80% no condensation |
3.9
| No | Kalem | Açıklama | Modül |
|---|---|---|---|
| 1 | Pixel pitch | 3.91mm | |
| 2 | Pixel Density | 65536 dots/m² | |
| 3 | Pixel configuration | 1R1G1B | |
| 4 | LED type | SMD1921 | |
| 5 | Module size | 250mm×250mm×16.5mm | |
| 6 | Module weight | 674g+5g | |
| 7 | Module resolution | W64*H64dots | |
| 8 | Module QTY/ m² | 16 pcs/ m² | |
| 9 | Min. Viewing Distance | ≥3.91m | |
| 10 | Brightness | 24500cd/m² | |
| 11 | Viewing Angle | H: 170°45’ V: 170°+5’ | |
| 12 | Driving Mode | 1/16 scan | |
| 13 | Interface | self-defined interface 16P | |
| 14 | Input voltage | 4.2V-5V | |
| 15 | Max. Power Consumption | 35 w Per piece | |
| 16 | Avg. Power Consumption | 18 w Per piece | |
| 17 | Signal Processing Depth | 16384 | |
| 18 | Video frame rate | 60 frames/s | |
| 19 | Refresh Rate | ≥3840Hz | |
| 20 | Defective Dots Rate | <0.0001 | |
| 21 | Decay Rate (Operate 3 years) | ≤15% | |
| 22 | Brightness Conformity | ≥98.5% | |
| 23 | Colors | 281 trillion | |
| 24 | MTBF | ≥10000 hours | |
| 25 | Lifespan | ≥100000 hours | |
| 26 | Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. | |
| 27 | Operating Temperature | -20℃~+60℃ | |
| 28 | Operating Humidity | 10-80% no condensation | |
| 29 | Storage Temperature | -20℃~+60℃ | |
| 30 | Storage Humidity | 10-80% no condensation |
Indoor Rental Screens
P1.9
P2.6
P2.9
P3.9
P1.9
| PH1.953 INDOOR SPECIFICATION | ||
| Module | ||
| 1 | Pixel pitch | 1.953mm |
| 2 | Pixel Density | 262144 dots/m² |
| 3 | Pixel configuration | 1R1G1B |
| 4 | LED type | SMD1515 |
| 5 | Module size | 250mm×250mm×16mm |
| 6 | Module weight | 565g±5g |
| 7 | Module resolution | W128*H128dots |
| 8 | Module QTY/ m² | 16 pcs/ m² |
| 9 | Min. Viewing Distance | ≥1.953m |
| 10 | Brightness | ≥600cd/m² |
| 11 | Viewing Angle | H：170°±5° V：170°±5° |
| 12 | Driving Mode | 1/32 scan |
| 13 | Interface | self-defined interface 16P |
| 14 | Input voltage | 4.5V-5V |
| 15 | Max. Power Consumption | 36 w Per piece |
| 16 | Avg. Power Consumption | 18 w Per piece |
| 17 | Signal Processing Depth | 65536 |
| 18 | Vedio frame rate | 60 frames/s |
| 19 | Refresh Rate | ≥3840Hz |
| 20 | Defective Dots Rate | ＜0.0001 |
| 21 | Decay Rate(Operate 3 years) | ≤15% |
| 22 | Brightness Conformity | ≥98.5% |
| 23 | Colors | 281 trillion |
| 24 | MTBF | ≥10000 hours |
| 25 | Lifespan | ≥100000 hours |
| 26 | Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| 27 | Operating Temperature | -20℃～+40℃ |
| 28 | Operating Humidity | 10-60% no condensation |
| 29 | Storage Temperature | -20℃～+60℃ |
| 30 | Storage Humidity | 10-60% no condensation |
| Control system parameter | ||
| 1 | Color temperature | 3000-21000K |
| 2 | Brightness level | 256 levels, automatic or manual adjustment. |
| 3 | Control way | Computer, real-time, off-line, wireless, internet etc. |
| 4 | PC Operation | Windows(XP、Vista)、Win7/Win8. Win10 |
| 5 | Video Signal | VGA/ DVI/ RF/ S-VIDEO/ RGBHV/ YUV/ YC/ COMPOSITION and so on |
| 6 | Communication Distance | Cat5 UTP 100 meters, Multimode optical fiber 500 meters, single 15 km |
P2.6
| PH2.604 INDOOR SPECIFICATION | ||
| Module | ||
| 1 | Pixel pitch | 2.604mm |
| 2 | Pixel Density | 147456 dots/m² |
| 3 | Pixel configuration | 1R1G1B |
| 4 | LED type | SMD1515 |
| 5 | Module size | 250mm×250mm×16mm |
| 6 | Module weight | 524g±5g |
| 7 | Module resolution | W96*H96dots |
| 8 | Module QTY/ m² | 16 pcs/ m² |
| 9 | Min. Viewing Distance | ≥2.604m |
| 10 | Brightness | ≥800cd/m² |
| 11 | Viewing Angle | H：170°±5° V：170°±5° |
| 12 | Driving Mode | 1/32 scan |
| 13 | Interface | self-defined interface 16P |
| 14 | Input voltage | 4.5V-5V |
| 15 | Max. Power Consumption | 40 w Per piece |
| 16 | Avg. Power Consumption | 20 w Per piece |
| 17 | Signal Processing Depth | 65536 |
| 18 | Vedio frame rate | 60 frames/s |
| 19 | Refresh Rate | ≥3840Hz |
| 20 | Defective Dots Rate | ＜0.0001 |
| 21 | Decay Rate(Operate 3 years) | ≤15% |
| 22 | Brightness Conformity | ≥98.5% |
| 23 | Colors | 281 trillion |
| 24 | MTBF | ≥10000 hours |
| 25 | Lifespan | ≥100000 hours |
| 26 | Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| 27 | Operating Temperature | -20℃～+40℃ |
| 28 | Operating Humidity | 10-60% no condensation |
| 29 | Storage Temperature | -20℃～+60℃ |
| 30 | Storage Humidity | 10-60% no condensation |
| Control system parameter | ||
| 1 | Color temperature | 3000-21000K |
| 2 | Brightness level | 256 levels, automatic or manual adjustment. |
| 3 | Control way | Computer, real-time, off-line, wireless, internet etc. |
| 4 | PC Operation | Windows(XP、Vista)、Win7/Win8. Win10 |
| 5 | Video Signal | VGA/ DVI/ RF/ S-VIDEO/ RGBHV/ YUV/ YC/ COMPOSITION and so on |
| 6 | Communication Distance | Cat5 UTP 100 meters, Multimode optical fiber 500 meters, single 15 km |
P2.9
| PH2.976 INDOOR SPECIFICATION | ||
| Module | ||
| 1 | Pixel pitch | 2.976mm |
| 2 | Pixel Density | 112896dots/m² |
| 3 | Pixel configuration | 1R1G1B |
| 4 | LED type | SMD2020 |
| 5 | Module size | 250mm×250mm×16mm |
| 6 | Module weight | 490g±5g |
| 7 | Module resolution | W84*H84dots |
| 8 | Module QTY/ m² | 16 pcs/ m² |
| 9 | Min. Viewing Distance | ≥2.976m |
| 10 | Brightness | ≥800cd/m² |
| 11 | Viewing Angle | H：170°±5° V：170°±5° |
| 12 | Driving Mode | 1/28 scan |
| 13 | Interface | self-defined interface 16P |
| 14 | Input voltage | 4.5V-5V |
| 15 | Max. Power Consumption | 38 w Per piece |
| 16 | Avg. Power Consumption | 19 w Per piece |
| 17 | Signal Processing Depth | 65536 |
| 18 | Vedio frame rate | 60 frames/s |
| 19 | Refresh Rate | ≥3840Hz |
| 20 | Defective Dots Rate | ＜0.0001 |
| 21 | Decay Rate(Operate 3 years) | ≤15% |
| 22 | Brightness Conformity | ≥98.5% |
| 23 | Colors | 281 trillion |
| 24 | MTBF | ≥10000 hours |
| 25 | Lifespan | ≥100000 hours |
| 26 | Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| 27 | Operating Temperature | -20℃～+40℃ |
| 28 | Operating Humidity | 10-60% no condensation |
| 29 | Storage Temperature | -20℃～+60℃ |
| 30 | Storage Humidity | 10-60% no condensation |
| Control system parameter | ||
| 1 | Color temperature | 3000-21000K |
| 2 | Brightness level | 256 levels, automatic or manual adjustment. |
| 3 | Control way | Computer, real-time, off-line, wireless, internet etc. |
| 4 | PC Operation | Windows(XP、Vista)、Win7/Win8. Win10 |
| 5 | Video Signal | VGA/ DVI/ RF/ S-VIDEO/ RGBHV/ YUV/ YC/ COMPOSITION and so on |
| 6 | Communication Distance | Cat5 UTP 100 meters, Multimode optical fiber 500 meters, single 15 km |
P3.9
| PH3.91 INDOOR SPECIFICATION | ||
| Module | ||
| 1 | Pixel pitch | 3.91mm |
| 2 | Pixel Density | 65536 dots/m² |
| 3 | Pixel configuration | 1R1G1B |
| 4 | LED type | SMD2020 |
| 5 | Module size | 250mm×250mm×15.5mm |
| 6 | Module weight | 580g±5g |
| 7 | Module resolution | W64*H64dots |
| 8 | Module QTY/ m² | 16 pcs/ m² |
| 9 | Min. Viewing Distance | ≥3.91m |
| 10 | Brightness | ≥800cd/m² |
| 11 | Viewing Angle | H：170°±5° V：170°±5° |
| 12 | Driving Mode | 1/16 scan |
| 13 | Interface | self-defined interface 16P |
| 14 | Input voltage | 4.5V-5V |
| 15 | Max. Power Consumption | 33 w Per piece |
| 16 | Avg. Power Consumption | 16.5 w Per piece |
| 17 | Signal Processing Depth | 16384 |
| 18 | Vedio frame rate | 60 frames/s |
| 19 | Refresh Rate | ≥3840Hz |
| 20 | Defective Dots Rate | ＜0.0001 |
| 21 | Decay Rate(Operate 3 years) | ≤15% |
| 22 | Brightness Conformity | ≥98.5% |
| 23 | Colors | 281 trillion |
| 24 | MTBF | ≥10000 hours |
| 25 | Lifespan | ≥100000 hours |
| 26 | Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection |
| 27 | Operating Temperature | -20℃～+40℃ |
| 28 | Operating Humidity | 10-60% no condensation |
| 29 | Storage Temperature | -20℃～+60℃ |
| 30 | Storage Humidity | 10-60% no condensation |
| Control system parameter | ||
| 1 | Color temperature | 3000-21000K |
| 2 | Brightness level | 256 levels, automatic or manual adjustment. |
| 3 | Control way | Computer, real-time, off-line, wireless, internet etc. |
| 4 | PC Operation | Windows(XP、Vista)、Win7/Win8. Win10 |
| 5 | Video Signal | VGA/ DVI/ RF/ S-VIDEO/ RGBHV/ YUV/ YC/ COMPOSITION and so on |
| 6 | Communication Distance | Cat5 UTP 100 meters, Multimode optical fiber 500 meters, single 15 km |
NOVA SERİSİ KONTROL KARTLARI
DH7508
DH7512
DH7516
TB40
TB60
VX400
VX600
VX1000
VX16S
CVT10
DH7508
DH7508 Özellikleri
1) 1 adet DVI video girişi
2) 1 adet ses girişi
3) 2 adet Ethernet portu çıkışı
4) USB kontrol arabirimi
5) Tek gönderim kartı 1280 × 1024, 1024 × 1200
1600 × 848, 1920 × 712 veya 2048 × 668
| Ürün tipi | Sending kart |
| Giriş çözünürlüğü | 1280 x 1024@60 HZ, 1024 x 1200@60 HZ, 1920 x 1200@ 60 HZ, 2048 x 1152 @ 60 HZ |
| Yükleme kapasitesi | 1.3 milyon piksel |
| Çalışma voltajı | 5 V |
| Bağlantı şekli | Usb |
| Video çıkışı | DVI |
| Ses girişi | 3.5 mm ses |
| Video formatı | RGB |
| Çıkış | RJ45 x 2 |
| Gri ölçek | 8 bit |
| Işık sensörü | 1 kanal |
DH7512
DH7512 Özellikleri
1) Entegre 12 standart HUB75 konektörler ve HUB yapısı yok
2) Tek kart çıkışı 24 grup RGB veri
3) Tek kart 256 x 226 çözünürlüğü destekler
4) Konfigürasyon dosyası geri bildirimi
5) Sıcaklık izleme
6) Ethernet kablosu iletişim durumu algılama
7) Güç kaynağı voltaj algılama
8) Piksel piksel parlaklık ve kromatiklik kalibrasyonu. Her LED için parlaklık ve kromatiklik kalibrasyon katsayıları
9) Önceden mağaza resim ayarı
10) AB RoHs standardına uygun
DH7516
DH7516 Özellikleri
1) 1 adet DVI video girişi
2) 1 adet ses girişi
3) 2 adet Ethernet portu çıkışı
4) Tek gönderim kartı 1280 × 1024, 1024 × 1200,
1600 × 848, 1920 × 712 veya 2048 × 668
5) 1 adet ışık sensörü arabirimi
6) Bağımsız güç kaynağı
| Ürün tipi | Kontrolör |
| Giriş çözünürlüğü | 1280 x 1024@60 HZ, 1024 x 1200@60 HZ, 1920 x 1200@ 60 HZ, 2048 x 1152 @ 60 HZ |
| Yükleme kapasitesi | 1.3 milyon piksel |
| Çalışma voltajı | 5 V |
| Bağlantı şekli | AC-100-240V-50/60 Hz |
| Video çıkışı | DVI |
| Ses girişi | 3.5mm ses |
| Video formatı | RGB |
| Çıkış | RJ45X2 |
| Gri ölçek | 8 bit |
| Işık sensörü | 1 kanal |
TB40
TB40 Özellikleri
1) Uzaktan yayımlama oynatma programı
2) Mevcut oynatma bilgilerini uzaktan İzleme
3) Uzaktan kumanda güç kaynağı
4) Zaman bölümüne göre veya tarih, hafta ve saate göre oynatma
5) Kendinden uyarlanabilir pencere ekranı
6) Çok işlemcili senkron ekran
7) Destek video, resim, metin, hava, saat, geri sayım, flash (sürüm 7 ve üzeri geçici olarak desteklenmez), word, excel, txt vb. gibi medya formatlarını destekler
8) Destek acil insert oynatmak, anında tebliğ
9) Kayıttan çalma günlüğünü uzaktan yönetme
10) U disk dışa aktarma ve ekle-oynat
11) Uygulama yazılımının ve donanım programlarının uzaktan yükseltilmesini destekler
12) Esnek yükleme kapasitesi: 512×1024, 960×600, 800×700, 1024×576,1520×384,2048×256,704×800, 1120×500, 904×640
13) Tam ölçekli çip desteği: Çeşitli çipleri destekleyebilir
14) Tam renkli statik 32 tarama, gerçek piksel / sanal piksel desteği
15) Alan frekansı 60 Hz
16) Gri seviyesi ayarlanabilir ve maksimum 16 bit 65536 seviyesini destekler
17) Yenileme frekansı: Tarama ekranı 3840 Hz elde edebilir ve statik ekran 6000 Hz elde edebilir
18) Destek parlaklık düzeltme ve renk düzeltmesi
19) MBI5036, MBI5034, MBI5039, DM13H’nin açık-kısa testini destekler
20) MON 300’ün tüm izleme durumlarını destekler (çalışma durumu, sıcaklık, nem, duman, anahtarlama güç kaynağı voltajı, fan hızı ve her dolabın açık açık tek lamba izlenmesi)
21) Yerleşik sıcaklık ve voltaj testi
22) Destek (optik prob NS048C ile) otomatik parlaklık ayarı
TB60
| Name | Description |
|---|---|
| SWITCH | Switches between synchronous and asynchronous modes. Staying on: Synchronous mode Off: Asynchronous mode |
| SIM CARD | SIM card slot Capable of preventing users from inserting a SIM card in the wrong orientation. |
| RESET | Factory reset button Press and hold this button for 5 seconds to reset the product to its factory settings. |
| USB | USB (Type B) port Connects to the control computer for content publishing and screen control. |
| LED OUT | Gigabit Ethernet outputs |
| Name | Description |
|---|---|
| SENSOR | Sensor connectors Connect to brightness sensors or temperature and humidity sensors. RF antenna connector (to be available in future updates) |
| HDMI | 1x HDMI 1.3 OUT – Support for HDMI loop – Maximum output resolution: The pixel clock cannot exceed 153 MHz. – Maximum output: 1920×1200@60Hz – HDCP 1.4 compliant – No support for interlaced signal output – In asynchronous mode, output resolutions support 400×4096@60Hz and 480×4096@60Hz. – Support for custom resolutions 1x HDMI 1.3 IN – Maximum input resolution: The pixel clock cannot exceed 153 MHz. – Maximum input: 1920×1200@60Hz – HDCP 1.4 compliant – No support for interlaced signal input – Support for custom resolutions |
| WiFi | Wi-Fi antenna connector (2.4 GHz Wi-Fi supported) Support for switching between Wi-Fi AP and Wi-Fi Sta |
| ETHERNET | Gigabit Ethernet port Connects to the control computer, a LAN or public network for content publishing and screen control. |
| COM 2 | GPS antenna connector |
| USB 3.0 | USB 3.0 (Type A) port Allows for USB playback, firmware upgrade and storage expansion. |
| COM 1 | 4G antenna connector |
| AUDIO OUT | Audio output connector OMTP headphones can be connected. |
| 100-240V~, 50/60Hz, 0.6A | Power input connector |
| ON/OFF | Power switch |
| Category | Item | Specification |
|---|---|---|
| Electrical Parameters | Input power | 100-240V~, 50/60Hz, 0.6A |
| Maximum power consumption | 18 W | |
| Storage Capacity | RAM | 1 GB |
| Internal storage | 32 GB | |
| Operating Environment | Temperature | –20ºC to +60ºC |
| Humidity | 0% RH to 80% RH, non-condensing | |
| Storage Environment | Temperature | –40°C to +80°C |
| Humidity | 0% RH to 80% RH, non-condensing | |
| Physical Specifications | Dimensions | 274.3 mm × 139.0 mm × 40.0 mm |
| Net weight | 1230.4 g | |
| Gross weight | 1650.0 g | |
| IP Rating | IP20 | |
| Codec | Resolution | Format | Remarks |
|---|---|---|---|
| JFIF file format 1.02 | 96×32 pixels to 817×8176 pixels | JPG, JPEG | No support for non-interlaced scan Support for SRGB JPEG Support for Adobe RGB JPEG |
| BMP | No Restriction | BMP | N/A |
| GIF | No Restriction | GIF | N/A |
| PNG | No Restriction | PNG | N/A |
| WEBP | No Restriction | WEBP | N/A |
| Codec | Resolution | Maximum Frame Rate | Maximum Bit Rate (Ideal Case) | Format | Remarks |
|---|---|---|---|---|---|
| MPEG-1/2 | 48×48 pixels to 1920×1088 pixels | 30fps | 80Mbps | DAT, MPG, VOB, TS | Support for field coding |
| MPEG4 | 48×48 pixels to 1920×1088 pixels | 30fps | 38.4Mbps | AVI, MKV, MP4, MOV, 3GP | No support for MS MPEG4 v1/v2/v3, GMC |
| H.264 | 48×48 pixels to 4096×2304 pixels | 2304p@60fps | 80Mbps | AVI, MKV, MP4, MOV, 3GP, TS, FLV | Support for field coding and MBAFF |
| H.264 MVC | 48×48 pixels to 4096×2304 pixels | 2304p@60fps | 100Mbps | MKV, TS | Support for Stereo High Profile only |
| H.265/HEVC | 64×64 pixels to 4096×2304 pixels | 2304p@60fps | 100Mbps | MKV, MP4, MOV, TS | Support for Main Profile, Tile & Slice |
| VP8 | 48×48 pixels to 1920×1088 pixels | 30fps | 38.4Mbps | WEBM, MKV | N/A |
| VP9 | 64×64 pixels to 4096×2304 pixels | 60fps | 80Mbps | WEBM, MKV | N/A |
| H.263 | SQCIF (128×96) QCIF (176×144) CIF (352×288) 4CIF (704×576) | 30fps | 38.4Mbps | 3GP, MOV, MP4 | No support for H.263+ |
| MJPEG | 48×48 pixels to 1920×1088 pixels | 60fps | 60Mbps | AVI | N/A |

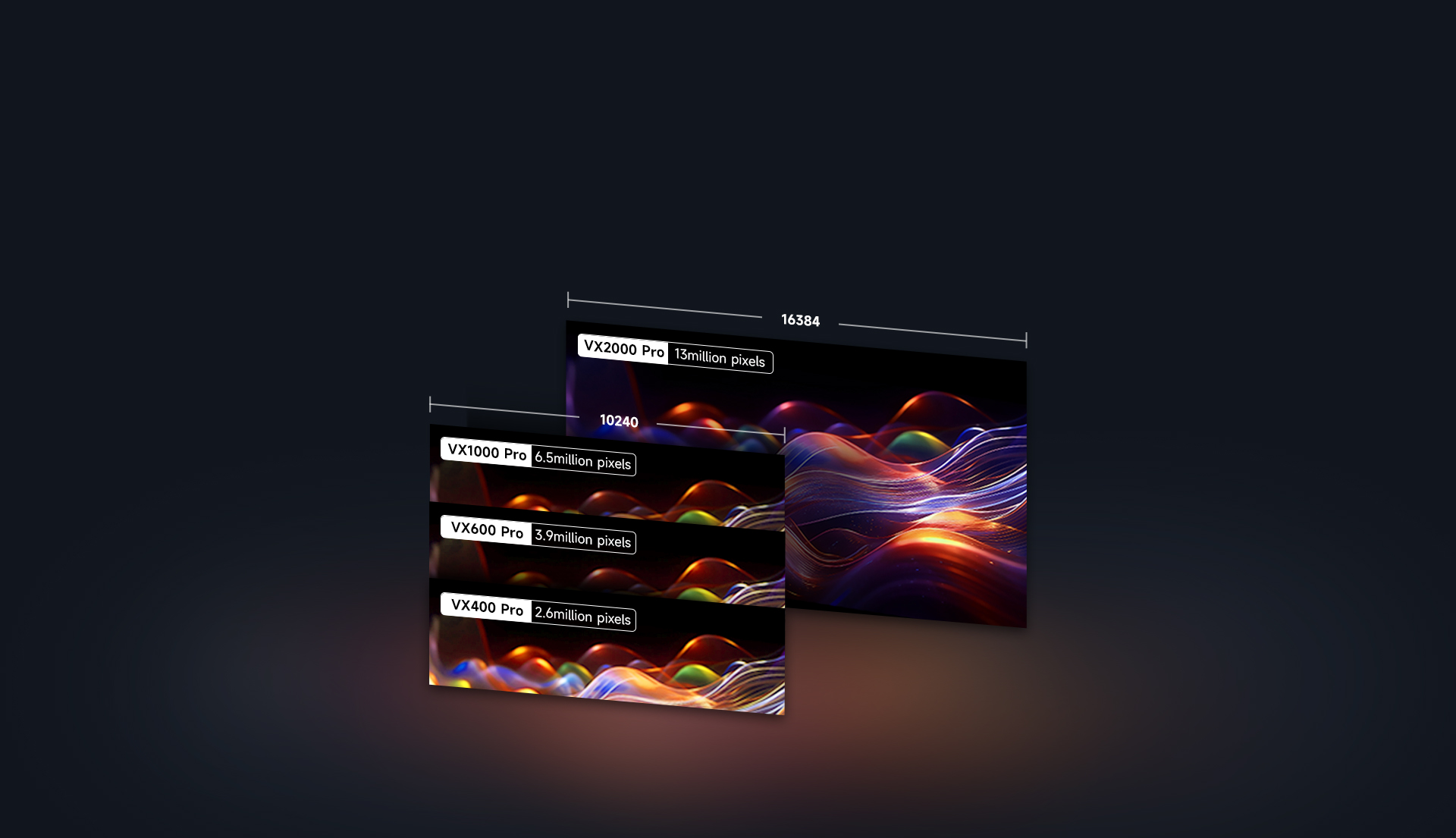

VX400
| No. | Area | Function |
|---|---|---|
| 1 | LCD screen | Display the device status, menus, submenus and messages. |
| 2 | Knob |
– Rotate the knob to select a menu item or adjust the parameter value. – Press the knob to confirm the setting or operation. |
| 3 | ESC button | Exit the current menu or cancel an operation. |
| 4 | Control area |
MAIN/PIP: Open or close a layer, and show the layer status. SCALE: A shortcut button for the full screen function. |
| 5 | Input source buttons | Show the input source status and switch the layer input source. |
| 6 | Shortcut function buttons |
PRESET: Access the preset settings menu. TEST: Access the test pattern menu. Freeze: Freeze the output image. FN: A customizable button |
| Connector | Qty | Description |
|---|---|---|
| 3G-SDI | 1 |
– ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs supported – Max. input resolution: 1920×1080@60Hz – Deinterlacing processing supported – 3G-SDI loop output supported – DOES NOT support input resolution and bit depth settings. |
| HDMI 1.3 | 2 |
– Max. input resolution: 1920×1200@60Hz – HDCP 1.4 compliant – DOES NOT support interlaced signal inputs – Custom resolutions supported – Loop output supported on HDMI 1.3-1 |
| DVI | 1 |
– Max. input resolution: 1920×1200@60Hz – HDCP 1.4 compliant – DOES NOT support interlaced signal inputs – Custom resolutions supported – Loop output supported on DVI |
| Connector | Qty | Description |
|---|---|---|
| Ethernet ports | 4 |
Gigabit Ethernet ports – Max. loading capacity: 2.6 million pixels – Max. width: 10,240 pixels – Max. height: 8192 pixels Ethernet ports 1 and 2 support audio output. |
| HDMI 1.3 | 1 |
– Support monitor and video output modes. – The output resolution is adjustable. |
| Connector | Qty | Description |
|---|---|---|
| OPT | 2 |
OPT 1: Self-adaptive, either for video input or for output OPT 2: For output only, with copy and backup modes |
| Connector | Qty | Description |
|---|---|---|
| ETHERNET | 1 | Connect to the control PC or router. |
| LIGHT SENSOR | 1 | Connect to a light sensor to collect the ambient brightness, allowing for automatic screen brightness adjustment |
| USB | 2 |
USB (Type-B): Connect to the control PC or input connector for device cascading USB (Type-A): Output connector for device cascading |
| Category | Item | Specification |
|---|---|---|
| Electrical Parameters | Power connector | 100–240V~, 1.5A, 50/60Hz |
| Rated power consumption | 35 W | |
| Operating Environment | Temperature | 0°C to 45°C |
| Humidity | 20% RH to 90% RH, non-condensing | |
| Storage Environment | Temperature | –20°C to +70°C |
| Humidity | 10% RH to 95% RH, non-condensing | |
| Physical Specifications | Dimensions | 483.6 mm × 301.2 mm × 50.1 mm |
| Net weight | 4 kg | |
| Noise Level (typical at 25°C/77°F) | 45 dB (A) | |
| Input Connectors | Bit Depth | Max. Input Resolution |
|---|---|---|
| HDMI 1.3 DVI OPT 1 |
8-bit RGB 4:4:4 | 1920×1200@60Hz (Standard) 3840×648@60Hz (Custom) 600×3840@60Hz (Forced) |
| YCbCr 4:4:4 | ||
| YCbCr 4:2:2 | ||
| YCbCr 4:2:0 | Not supported | |
| 10-bit | Not supported | |
| 12-bit | Not supported | |
| 3G-SDI |
– Max. input resolution: 1920×1080@60Hz – DOES NOT support input resolution and bit depth settings. – Supports ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs. |
|
VX600
| No. | Area | Function |
|---|---|---|
| 1 | LCD screen | Display the device status, menus, submenus and messages. |
| 2 | Knob |
– Rotate the knob to select a menu item or adjust the parameter value. – Press the knob to confirm the setting or operation. |
| 3 | ESC button | Exit the current menu or cancel an operation. |
| 4 | Control area |
Open or close a layer (main layer and PIP layers), and show the layer status. SCALE: A shortcut button for the full screen function. |
| 5 | Input source buttons | Show the input source status and switch the layer input source. |
| 6 | Shortcut function buttons |
PRESET: Access the preset settings menu. TEST: Access the test pattern menu. Freeze: Freeze the output image. FN: A customizable button |
| Connector | Qty | Description |
|---|---|---|
| 3G-SDI | 1 |
– ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs supported – Max. input resolution: 1920×1080@60Hz – Deinterlacing processing supported – 3G-SDI loop through output supported – DOES NOT support input resolution and bit depth settings. |
| HDMI 1.3 | 2 |
– Max. input resolution: 1920×1200@60Hz – HDCP 1.4 compliant – Custom resolutions supported – Loop through output supported on HDMI 1.3-1 – DOES NOT support interlaced signal inputs |
| DVI | 1 |
– Max. input resolution: 1920×1200@60Hz – HDCP 1.4 compliant – Custom resolutions supported – Loop through output supported – DOES NOT support interlaced signal inputs |
| Connector | Qty | Description |
|---|---|---|
| Ethernet ports | 6 |
Gigabit Ethernet ports – Max. loading capacity: 3.9 million pixels – Max. width: 10,240 pixels – Max. height: 8192 pixels Ethernet ports 1 and 2 support audio output. |
| HDMI 1.3 | 1 |
– Support monitor and video output modes. – The output resolution is adjustable. |
| Connector | Qty | Description |
|---|---|---|
| OPT | 2 |
OPT 1: Self-adaptive, either for video input or for output OPT 2: For output only, with copy and backup modes |
| Connector | Qty | Description |
|---|---|---|
| ETHERNET | 1 | Connect to the control PC or router. |
| USB | 2 |
USB 2.0 (Type-B): Connect to the control PC or input connector for device cascading USB 2.0 (Type-A): Output connector for device cascading |
| GENLOCK IN-LOOP | 1 |
Connect to an external sync signal. IN: Accept the sync signal. LOOP: Loop through the sync signal. |
| LIGHT SENSOR | 1 | Connect to a light sensor to collect the ambient brightness, allowing for automatic screen brightness adjustment. |
| Category | Item | Specification |
|---|---|---|
| Electrical Parameters | Power connector | 100–240V~, 1.5A, 50/60Hz |
| Rated power consumption | 35 W | |
| Operating Environment | Temperature | –10°C to 45°C |
| Humidity | 20% RH to 90% RH, non-condensing | |
| Storage Environment | Temperature | –20°C to +70°C |
| Humidity | 10% RH to 95% RH, non-condensing | |
| Physical Specifications | Dimensions | 483.6 mm × 351.2 mm × 50.1 mm |
| Net weight | 4 kg | |
| Noise Level (typical at 25°C/77°F) | 45 dB (A) | |
| Input Connectors | Bit Depth | Max. Input Resolution |
|---|---|---|
| HDMI 1.3 DVI OPT 1 |
8-bit RGB 4:4:4 | 1920×1200@60Hz (Standard) 3840×648@60Hz (Custom) 600×3840@60Hz (Forced) |
| YCbCr 4:4:4 | ||
| YCbCr 4:2:2 | ||
| YCbCr 4:2:0 | Not supported | |
| 10-bit | Not supported | |
| 12-bit | Not supported | |
| 3G-SDI |
– Max. input resolution: 1920×1080@60Hz – DOES NOT support input resolution and bit depth settings. – Supports ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs. |
|
VX1000
| No. | Area | Function |
|---|---|---|
| 1 | LCD screen | Display the device status, menus, submenus and messages. |
| 2 | Knob |
– Rotate the knob to select a menu item or adjust the parameter value. – Press the knob to confirm the setting or operation. |
| 3 | ESC button | Exit the current menu or cancel an operation. |
| 4 | Control area |
Open or close a layer (main layer and PIP layers), and show the layer status. SCALE: A shortcut button for the full screen function. |
| 5 | Input source buttons | Show the input source status and switch the layer input source. |
| 6 | Shortcut function buttons |
PRESET: Access the preset settings menu. TEST: Access the test pattern menu. Freeze: Freeze the output image. FN: A customizable button |
| Connector | Qty | Description |
|---|---|---|
| 3G-SDI | 1 |
– ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs supported – Max. input resolution: 1920×1080@60Hz – Deinterlacing processing supported – 3G-SDI loop output supported – DOES NOT support input resolution and bit depth settings. |
| HDMI 1.4 | 2 |
– Max. input resolution: 3840×1080@60Hz or 3840×2160@30Hz – HDCP 1.4 compliant – Mosaic of two HDMI 1.4 inputs supported – Custom resolutions supported – Loop output supported on HDMI 1.4 1 – DOES NOT support interlaced signal inputs |
| DVI (HDMI 1.4) | 2 |
– Max. input resolution: 3840×1080@60Hz or 3840×2160@30Hz – HDCP 1.4 compliant – Custom resolutions supported – Mosaic of two DVI inputs supported – Loop output supported on DVI 1 – DOES NOT support interlaced signal inputs |
| Connector | Qty | Description |
|---|---|---|
| Ethernet ports | 10 |
Gigabit Ethernet ports – Max. loading capacity: 6.5 million pixels – Max. width: 10,240 pixels – Max. height: 8192 pixels Ethernet ports 1 and 2 support audio output. |
| HDMI 1.3 | 1 |
– Support monitor and video output modes. – The output resolution is adjustable. |
| Connector | Qty | Description |
|---|---|---|
| OPT | 2 |
10G optical fiber ports OPT 1: Self-adaptive, either for video input or for output OPT 2: For output only, with copy and backup modes |
| Connector | Qty | Description |
|---|---|---|
| ETHERNET | 1 | Connect to the control PC or router. |
| USB | 2 |
USB 2.0 (Type-B): Connect to the control PC or input connector for device cascading USB 2.0 (Type-A): Output connector for device cascading |
| GENLOCK IN-LOOP | 1 |
Connect to an external sync signal. Accepts bi-level and tri-level signals. IN: Accept the sync signal. LOOP: Loop the sync signal. |
| LIGHT SENSOR | 1 | Connect to a light sensor to collect the ambient brightness, allowing for automatic screen brightness adjustment. |
| Category | Item | Specification |
|---|---|---|
| Electrical Parameters | Power connector | 100–240V~, 1.5A, 50/60Hz |
| Rated power consumption | 35 W | |
| Operating Environment | Temperature | 0°C to 45°C |
| Humidity | 20% RH to 90% RH, non-condensing | |
| Storage Environment | Temperature | –20°C to +70°C |
| Humidity | 10% RH to 95% RH, non-condensing | |
| Physical Specifications | Dimensions | 483.6 mm × 351.2 mm × 50.1 mm |
| Net weight | 4 kg | |
| Noise Level (typical at 25°C/77°F) | 45 dB (A) | |
| Input Connectors | Bit Depth | Max. Input Resolution |
|---|---|---|
| HDMI 1.4 DVI (HDMI 1.4) OPT 1 |
8-bit RGB 4:4:4 | 3840×1080@60Hz (Standard) 4092×1136@60Hz (Custom) 4096×1080@60Hz (Forced) |
| YCbCr 4:4:4 | ||
| YCbCr 4:2:2 | ||
| YCbCr 4:2:0 | Not supported | |
| 10-bit | Not supported | |
| 12-bit | Not supported | |
| 3G-SDI |
– Max. input resolution: 1920×1080@60Hz – DOES NOT support input resolution and bit depth settings. – Supports ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs. |
|
VX16S
| Özellik | Değer |
|---|---|
| Video Desteği | 2160p@60Hz |
| Piksel Desteği | 10.6 Milyon Piksel |
| VGA Portu | 2 Adet |
| DVI Portu | 2 Adet |
| HDMI Portu | 3 Adet |
| Ethernet Portu | 16 Adet |
| USB Portu | 1 Adet |
| Video Bit Derinliği | 10 Bit |
| LCD Gösterge Ekranı | Var |
| Ses Giriş Desteği | Var |
CVT10
| Name | Description |
|---|---|
| USB Type-B | USB control port. Connect to the control computer (NovaLCT V5.4.0 or later) for upgrading the CVT10 program, not for cascading. |
| PWR | Power indicator. Always on: The power supply is normal. |
| STAT | Running indicator. Flashing: The device is functioning normally. |
| OPT1/OPT2 | Optical port indicators. Always on: The optical fiber connection is normal. |
| 1–10 | Ethernet port indicators. Always on: The Ethernet cable connection is normal. |
| MODE | The button to switch the device working mode. The default mode is CVT mode. Only this mode is currently supported. |
| CVT/DIS | Working mode indicators. Always on: The corresponding mode is selected. CVT: The fiber converter mode. OPT1 is the master port and OPT2 is the backup port. DIS: Reserved |
| Name | Description |
|---|---|
| 100-240V~, 50/60Hz, 0.6A | Power input connector ON: Turn on the power. OFF: Turn off the power. For the PowerCON connector, users are not allowed to plug in hot. |
| OPT1/OPT2 | 10G optical ports CVT10-S optical module description: – Hot swappable – Transmission rate: 9.95 Gbit/s to 11.3 Gbit/s – Wavelength: 1310 nm – Transmission distance: 10 km CVT10-M optical module description: – Hot swappable – Transmission rate: 9.95 Gbit/s to 11.3 Gbit/s – Wavelength: 850 nm – Transmission distance: 300 m |
| 1–10 | Gigabit Ethernet ports |
| Category | Item | Specification |
|---|---|---|
| Electrical Specifications | Power supply | 100-240V~, 50/60Hz, 0.6A |
| Rated power consumption | 22 W | |
| Operating Environment | Temperature | –20°C to +55°C |
| Humidity | 10% RH to 80% RH, non-condensing | |
| Storage Environment | Temperature | –20°C to +70°C |
| Humidity | 10% RH to 95% RH, non-condensing | |
| Physical Specifications | Dimensions | 254.3 mm × 50.6 mm × 290.0 mm |
| Net weight | 2.1 kg | |
| Gross weight | 3.1 kg |
COLAYTI SERİSİ KONTROL KARTLARI
E80
E120
5A-75E
A35
A40
A60
A200
A500
A800
X2M
X4M
X6
X7
X8E
VX10
X12
X16E
X20M
X26M
X40M
Indoor Rental Screens
P1.9
P2.6
P2.9
P3.9
Outdoor Rental Screens
Telefon
+90 (212) 220 40 04
info@ledajans.com
Adres
Halide Edip Adıvar Mah. Gül 2 Sokak No: 10a, 34382 Şişli/İstanbul
Satış kanallarımız
